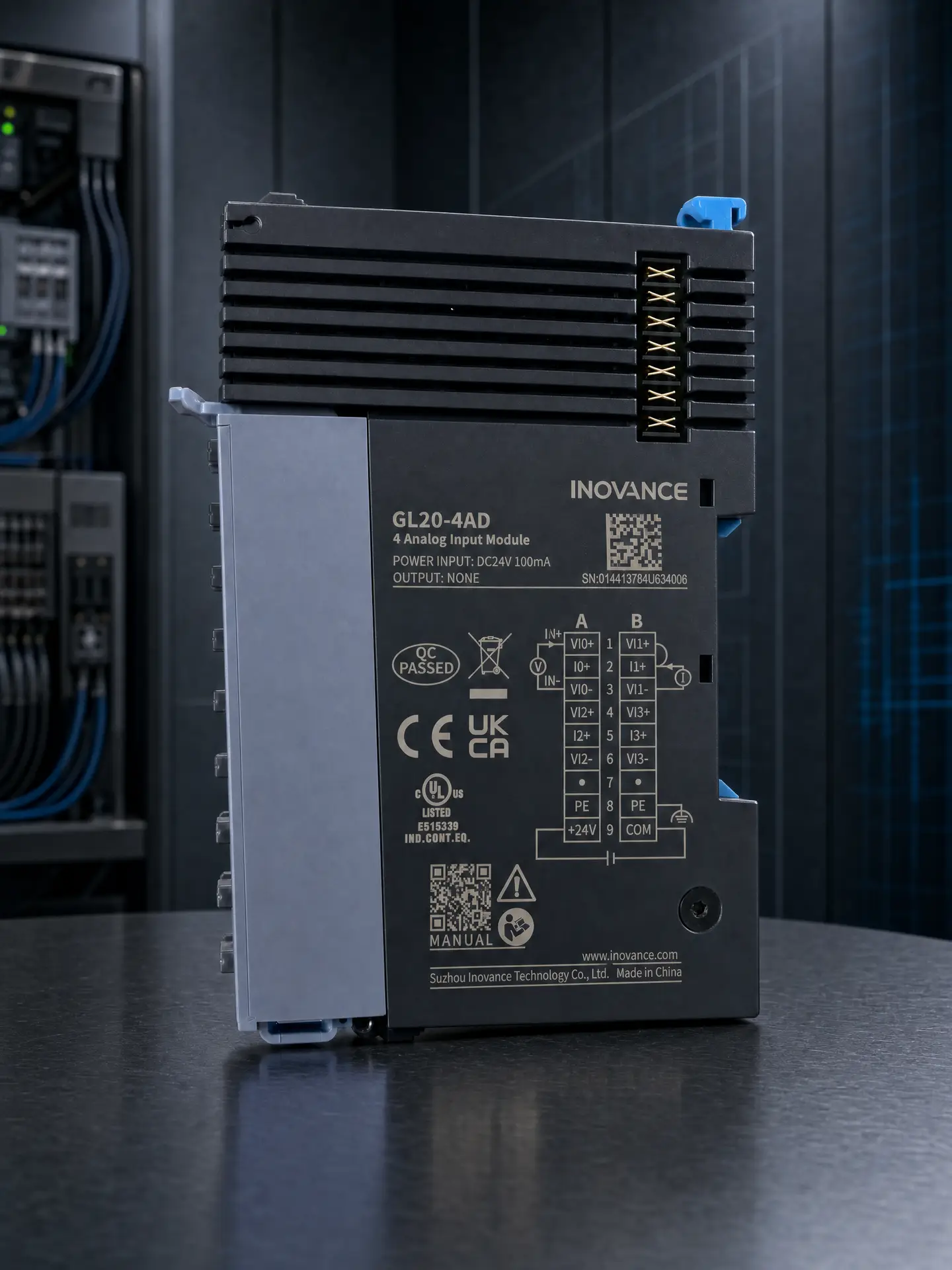

Inovance GL20-4AD 4-Channel Analog Input Module
The Inovance GL20-4AD is a genuine 4-channel analog input module for the GL20 remote I/O series. It accepts voltage and current analog signals and communicates over the GL20 bus back to the head station, giving PLC and DCS systems extra analog input capacity for pressure, temperature, level and flow transmitters on the plant floor.
Key Specifications
Brand: INOVANCE (Suzhou Inovance Technology Co., Ltd.)
Model: GL20-4AD
Type: 4-Channel Analog Input Module (voltage/current input)
Power Input: DC24V, 100mA
Output: None (input-only module)
Certifications: CE, UKCA, UL Listed (E515339, IND.CONT.EQ.)
Installation: GL20 DIN-rail I/O bus, plug-in terminal blocks (side A and side B)
Condition: New original, factory sealed, QC passed
Origin: Made in China, manufactured by Suzhou Inovance Technology Co., Ltd.
Terminal Layout
The GL20-4AD has two 9-position terminal blocks covering the module’s four analog input channels:
Side A: 1 VI0+, 2 I0+, 3 VI0-, 4 VI2+, 5 I2+, 6 VI2-, 7 (reserved), 8 PE, 9 +24V
Side B: 1 VI1+, 2 I1+, 3 VI1-, 4 VI3+, 5 I3+, 6 VI3-, 7 (reserved), 8 PE, 9 COM
Where This Module Is Used
The GL20-4AD is used by panel builders and maintenance engineers who need extra analog inputs on an existing GL20 remote I/O station, or who are building a new GL20 rack for a bottling, packaging or general automation line. It is a common spare part to keep on hand alongside other GL20 series modules, such as the Inovance GL20-0016ETP digital output module and the Inovance GL20-2HC counting module, as well as the Inovance GE20-TF memory expansion card, across Iraq, the GCC and other Arab markets we serve.
Why Buy From Rendat / Machines Spare Parts
We stock and source new-original Inovance controllers, GL20/GE20 series modules, HMIs, servo drives and inverters for factories already running Chinese automation equipment. Every unit is inspected before shipping, and we can usually confirm stock and lead time within one business day. Full technical documentation for the GL20 series is published by Inovance at inovance.com.
Ordering Information
This listing is for one Inovance GL20-4AD 4-channel analog input module (SKU: GL20-4AD), new and original, in factory-sealed packaging. Suitable as a direct replacement spare part for an existing GL20-4AD module, or as a new addition to a GL20 remote I/O system. Contact us with your quantity and destination country for a quotation and shipping lead time.
Frequently Asked Questions
Does the GL20-4AD accept both voltage and current signals?
Yes. Each of the four channels can be wired for voltage input or current input, so the module works with common industrial transmitters that output either 0-10V or 4-20mA signals.
Can the GL20-4AD be added to an existing GL20 remote I/O station?
Yes. It plugs into the GL20 DIN-rail bus alongside other GL20 modules already installed, so panel builders can expand analog input capacity on a station that is already running.
What power does the module need?
The GL20-4AD is powered by DC24V at 100mA, supplied through the +24V and COM terminals on its terminal blocks, the same power arrangement used across the GL20 module range.
Is this module compatible with other Inovance GL20 controllers?
Yes. The GL20-4AD is designed to work as part of the same GL20 remote I/O family as digital input/output and counting modules, so it can be mixed and matched on one head station to match a specific automation line’s I/O count.
