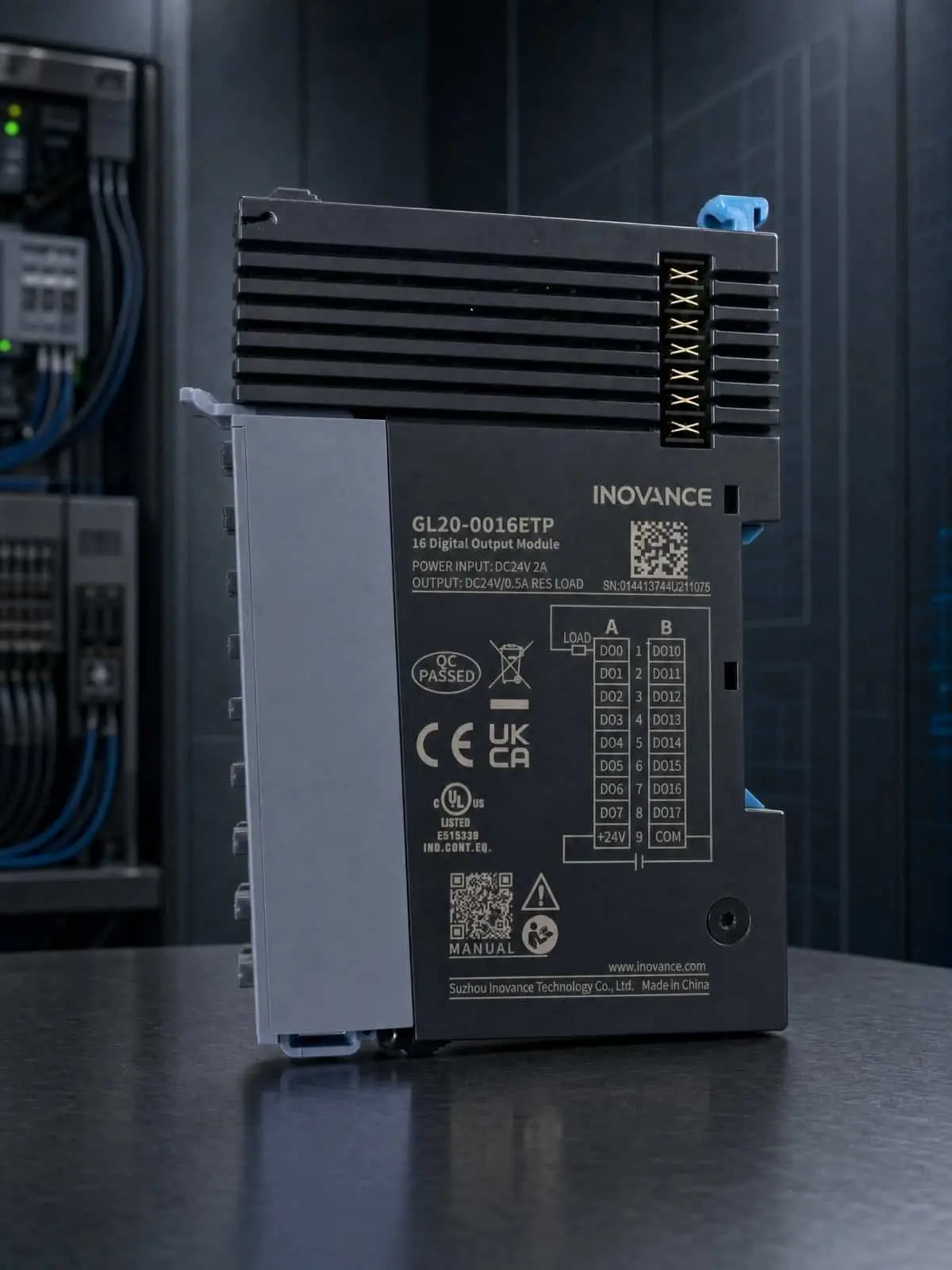

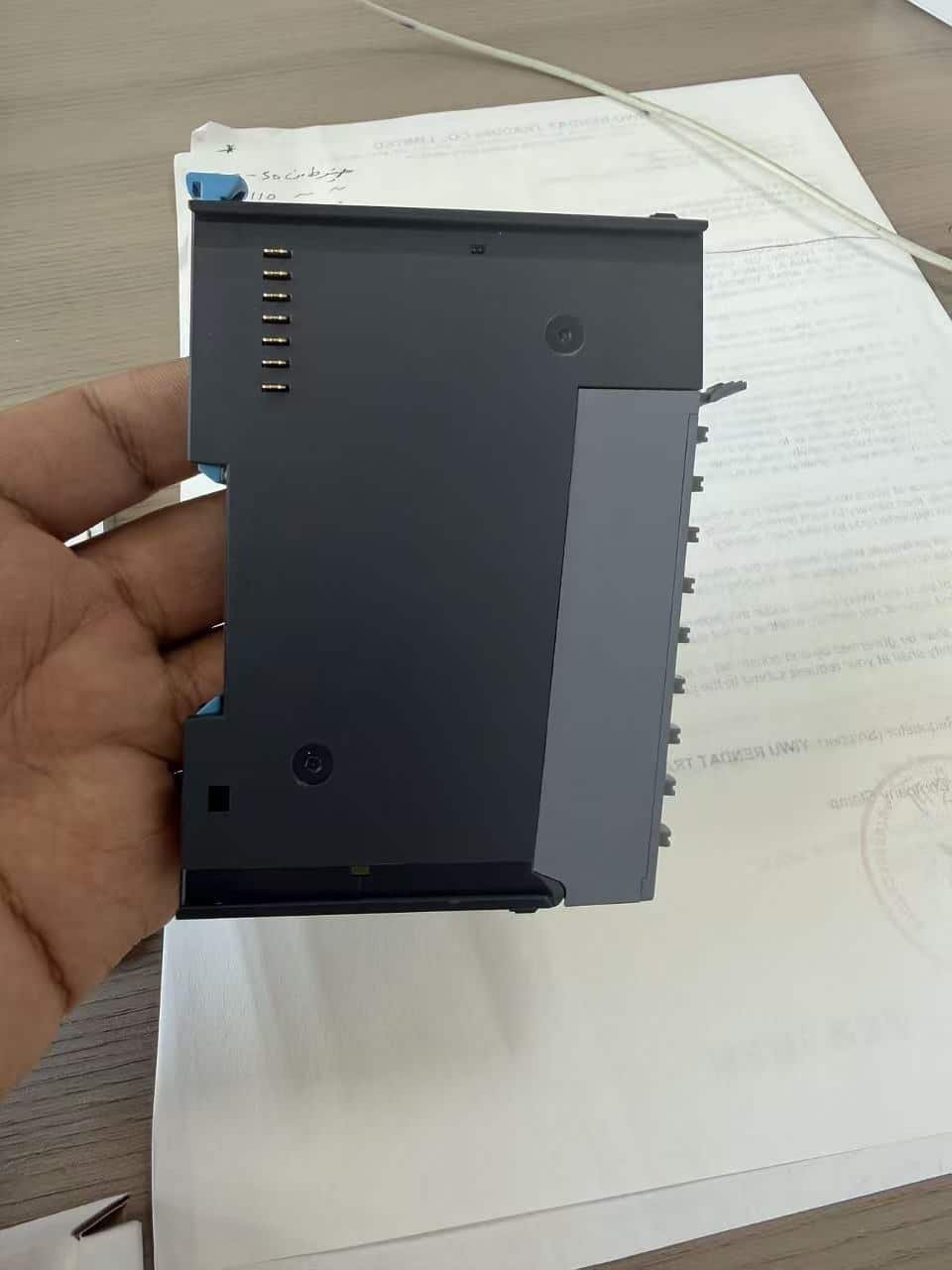

Inovance GL20-0016ETP Digital Output Module
The Inovance GL20-0016ETP is a genuine, factory-sealed 16-channel digital output module from the GL20 distributed I/O series, built by Suzhou Inovance Technology Co., Ltd. It is a direct expansion module for GL20 remote I/O racks and couplers, giving a control system 16 additional transistor outputs to drive relays, solenoid valves, indicator lamps, contactors, small motors and other 24V DC loads on the factory floor.
Key Specifications
Brand: INOVANCE (Suzhou Inovance Technology Co., Ltd.)
Model: GL20-0016ETP
Type: 16-Channel Digital Output Module, GL20 series I/O expansion module
Power Input: DC 24V, 2A
Output: DC 24V / 0.5A per channel, resistive load, transistor PNP output
Channels: 16 digital outputs (DO0-DO17, arranged as A/B rows of 8+8)
Terminals: 18-point (2 x 9) removable spring-clamp terminal block for fast wiring and replacement
Certifications: CE, UKCA, cULus Listed (E515339, IND. CONT. EQ.)
Mounting: DIN-rail, side-by-side coupling with other GL20 series modules

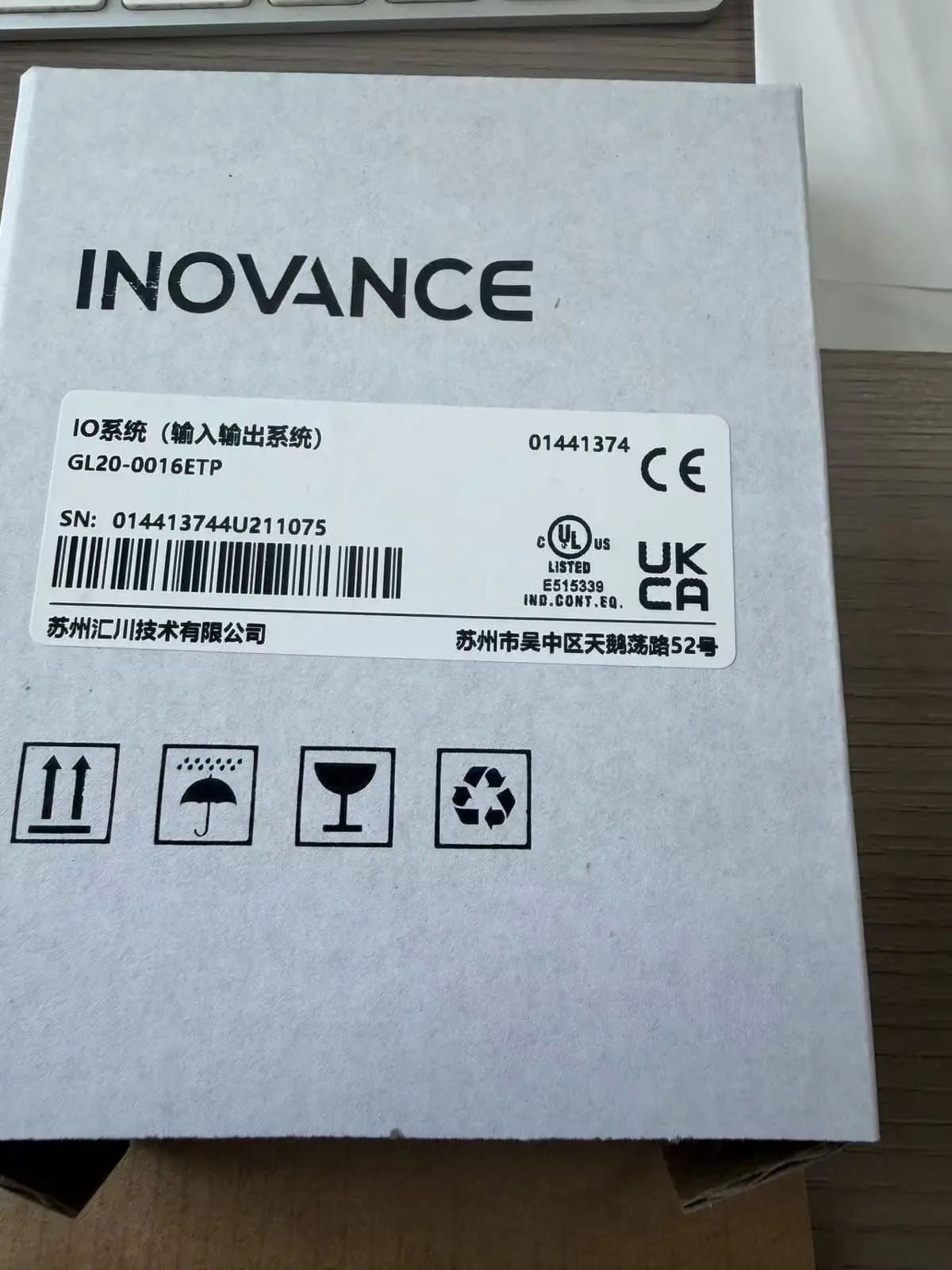

Condition: New original, factory sealed box, QC passed
Origin: Made in China, manufactured by Suzhou Inovance Technology Co., Ltd.
Where This Module Is Used
GL20-0016ETP modules are used wherever an Inovance PLC or remote I/O system needs extra output points close to the field devices instead of running long wires back to a central cabinet. Typical applications include bottling and filling lines, labelling and packaging machines, conveyor and sorting systems, CNC and woodworking machinery, water treatment skids, and general panel-building projects across the GCC, Iraq, Egypt and other Arab markets we serve. Because the module snaps onto a GL20 coupler alongside other I/O modules (such as the Inovance GL20-2HC high-speed counting module), it is easy for a panel builder to mix counting, digital input and digital output points on the same DIN rail run.
Why Buy From Rendat / Machines Spare Parts
We stock and source new-original Inovance GL20 series modules, PLCs, HMIs, servo drives and inverters for factories already running Chinese automation equipment in Arab markets. Every unit we sell is inspected before shipping, and we can usually confirm stock and lead time within one business day. If you need the full technical datasheet or wiring manual, Inovance publishes documentation on its official site at inovance.com.
Ordering Information
This listing is for one Inovance GL20-0016ETP 16-channel digital output module (SKU: GL20-0016ETP), new and original, in factory-sealed packaging. Suitable as a direct replacement spare part for existing GL20-0016ETP modules, or as a new addition to a GL20 remote I/O rack. Contact us with your quantity and destination country for a quotation and shipping lead time.
