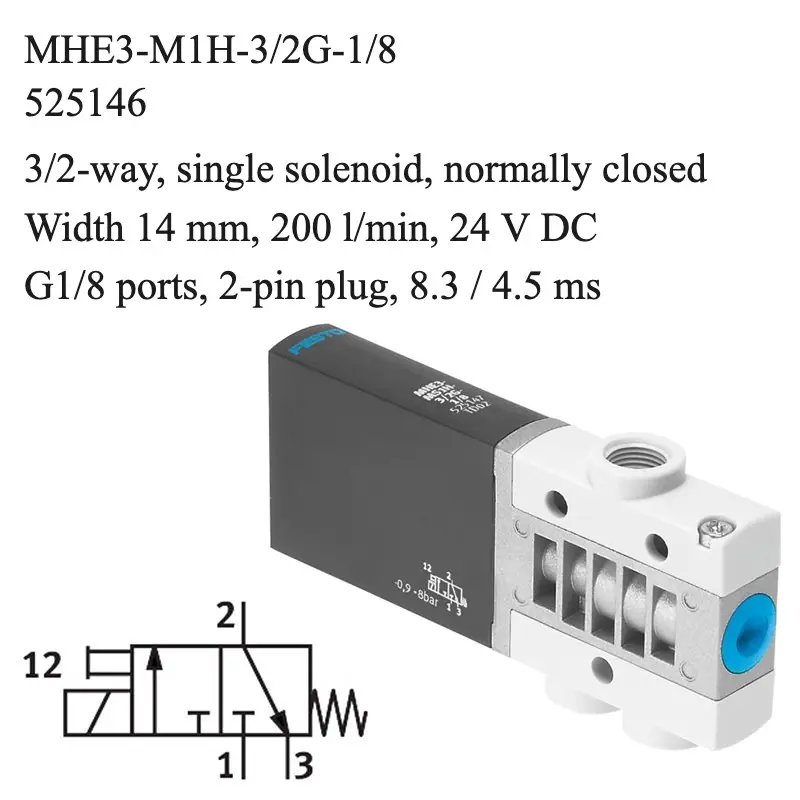

The Festo MHE3-M1H-3/2G-1/8, Festo part number 525146, is a directly actuated 3/2-way, single solenoid, normally closed solenoid valve from the Festo MHE3 fast-switching series. It has a standard nominal flow rate of 200 l/min, G1/8 pneumatic connections, a 2-pin plug electrical connection and runs on 24 V DC. Switching time is 8.3 ms on and 4.5 ms off, with a maximum switching frequency of 130 Hz.
The valve body is only 14 mm wide, so valves can be mounted side by side on a 19 mm grid to build a compact bank. The design is a pressure-relief poppet valve with a mechanical spring return and a non-detenting manual override, in a coated die-cast zinc housing rated IP65.
Technical specifications
| Brand | Festo |
|---|---|
| Festo part number | 525146 |
| Type code | MHE3-M1H-3/2G-1/8 |
| Series | MHE3 fast-switching solenoid valves |
| Valve function | 3/2-way, single solenoid, normally closed |
| Design | Pressure-relief poppet valve, direct piloting |
| Type of reset | Mechanical spring |
| Standard nominal flow rate | 200 l/min |
| Nominal size | 3 mm |
| Construction width | 14 mm |
| Grid dimension | 19 mm |
| Pneumatic connection | G1/8 (all ports) |
| Operating pressure | -0.09 MPa to 0.8 MPa (-0.9 to 8 bar) |
| Operating voltage | 24 V DC ±10% |
| Power consumption | 3.7 W (24 V DC) |
| Duty cycle | 100% |
| Switching time, on / off | 8.3 ms / 4.5 ms |
| Max. switching frequency | 130 Hz |
| Electrical connection | 2-pin plug |
| Manual override | Non-detenting |
| Additional functions | None (standard coil) |
| Degree of protection | IP65 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Media and ambient temperature | -5 °C to +60 °C |
| Mounting position | Any |
| Housing material | Die-cast zinc, coated |
| Seal material | HNBR, NBR |
| Weight | 120 g |
| Conformity | CE marking, UKCA marking, RoHS, LABS-conform (VDMA 24364) |
| Condition | New and original, factory packaged |
Typical applications
Handling and assembly equipment, pick-and-place units, sorting and ejection systems, blow-off and air-knife circuits, textile machinery, packaging and filling lines, laboratory and medical devices — anywhere a short cycle time and a compact valve footprint matter.
Frequently asked questions
Is the Festo 525146 normally open or normally closed?
It is normally closed (closed at rest, opens when energised).
What is the difference between the Festo M1H and MS1H versions?
The MS1H versions carry integrated electronics: holding-current reduction, spark arresting and a protective circuit. They switch much faster and tolerate far higher switching frequencies. On the MHE3, MS1H switches in about 2.3 ms at up to 280 Hz, while the standard M1H coil switches in about 8.3 ms at up to 130 Hz. The M1H is the simpler and cheaper option where speed is not critical. This item is the M1H version.
What does the -K at the end of a Festo MHE part number mean?
The -K suffix means the valve is supplied with a fixed 2.5 m PUR cable instead of a 2-pin plug. This item is the plug version, so you also need a plug socket with cable such as the Festo KMYZ-4-24-2.5-B (193691), the KMEB-1-24-2.5-LED (151688) with LED, or the NEBV-Z4WA2L-P-E-2.5-N-LE2-S1 (8047671).
Can the Festo MHE3-M1H-3/2G-1/8 be used with vacuum?
Yes. The operating pressure range starts at -0.09 MPa (-0.9 bar), so the valve can switch vacuum as well as compressed air. For reversed flow direction the pressure range is limited to -0.09 to 0.1 MPa.
What power supply does it need?
24 V DC, ±10%. Power consumption is 3.7 W (24 V DC) at a 100% duty cycle.
Is this a genuine Festo part?
Yes. RendatSP supplies new, original, factory-packaged Festo parts. Part number 525146 is the official Festo order number for the MHE3-M1H-3/2G-1/8.
All Festo MHE3 models we supply
The MHE3 family shares the same body (14 mm wide, 200 l/min). The models differ in valve function, port type and electrical connection. The current item is shown in bold. If you are not sure which model fits your machine, see our Festo MHE solenoid valve selection guide.
| Part number | Type code | Function | Ports | Electrical |
|---|---|---|---|---|
| 525146 | MHE3-M1H-3/2G-1/8 | 3/2-way, normally closed | G1/8 | 2-pin plug |
| 525147 | MHE3-MS1H-3/2G-1/8 | 3/2-way, normally closed | G1/8 | 2-pin plug |
| 525148 | MHE3-M1H-3/2G-1/8-K | 3/2-way, normally closed | G1/8 | 2.5 m cable |
| 525149 | MHE3-MS1H-3/2G-1/8-K | 3/2-way, normally closed | G1/8 | 2.5 m cable |
| 525152 | MHE3-M1H-3/2G-QS-6-K | 3/2-way, normally closed | QS-6 push-in, 6 mm | 2.5 m cable |
| 525153 | MHE3-MS1H-3/2G-QS-6-K | 3/2-way, normally closed | QS-6 push-in, 6 mm | 2.5 m cable |
| 525171 | MHE3-MS1H-3/2O-QS-6 | 3/2-way, normally open | QS-6 push-in, 6 mm | 2-pin plug |
Matching cable for this valve
This is the plug version, so it needs a plug socket with cable. We supply three options: the Festo NEBV-Z4WA2L-P-E-2.5-N-LE2-S1 (8047671) with LED and protective circuit, IP65; the Festo KMEB-1-24-2.5-LED (151688) with LED and protective conductor, IP65; and the basic Festo KMYZ-4-24-2.5-B (193691) without LED, IP40.
