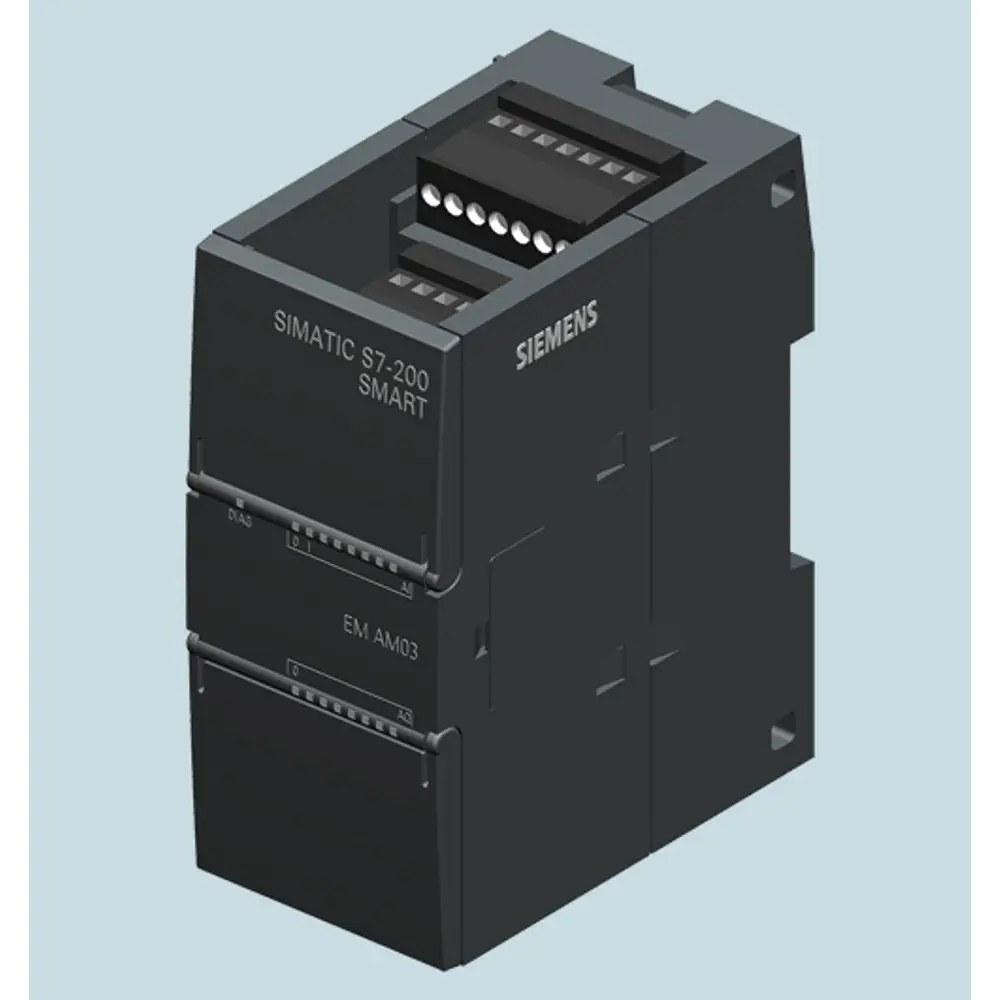

The Siemens 6ES7288-3AM03-0AA0 is an EM AM03 mixed analog module for the SIMATIC S7-200 SMART, combining two analog inputs and one analog output in a single 45 mm module.
This is the module for a single closed loop: read the process value and a second reference or feedback signal on the inputs, and send the control signal out on the analog output. It is the smallest and cheapest way to add PID control to an S7-200 SMART machine.
EM expansion modules clip onto the right-hand side of an S7-200 SMART SR, ST or G2 CPU and are recognised automatically – the module takes the next free address range and needs no switches or jumpers. Up to six EM modules can be added to one CPU, in any mix of digital and analog, so a machine that outgrows its controller can be extended without replacing it. The economic CR-series CPUs do not accept expansion modules.
Technical data
| Siemens order number | 6ES7288-3AM03-0AA0 |
|---|---|
| Product family | SIMATIC S7-200 SMART |
| Module type | EM AM03 |
| الوظيفة | 2 analog inputs / 1 analog output |
| Analog inputs | 2 channels |
| Input ranges | Voltage +/-10 V, +/-5 V, +/-2.5 V or current 0 to 20 mA, selectable per module |
| Input resolution | 11 bits plus sign (voltage), 11 bits (current) |
| Analog outputs | 1 channel |
| Output ranges | Voltage +/-10 V or current 0 to 20 mA |
| Output resolution | 10 bits plus sign (voltage), 10 bits (current) |
| Bus connection | S7-200 SMART expansion bus (CPU right-hand side) |
| Max. modules per CPU | 6 EM per S7-200 SMART SR/ST CPU |
| Dimensions (W x H x D) | 45 x 100 x 81 mm |
| الوزن | approx. 150 g |
| Operating temperature | -20 to +55 C (horizontal mounting) |
| Mounting | 35 mm DIN rail or panel mounting |
| Condition | New, original Siemens |
Typical applications
- Pressure, level, flow and temperature measurement
- Valve positioner and proportional valve control
- Variable speed drive reference signals
- Load cell and weighing signal conditioning
- Process skids and water treatment plants
Frequently asked questions
Which CPUs does this module work with?
All expandable S7-200 SMART CPUs: SR20, ST20, SR30, ST30, SR40, ST40, SR60, ST60, the V3.0 versions and the S7-200 SMART G2 CPUs. It does not work with the economic CR-series CPUs, which are not expandable, and it is not compatible with S7-1200 or the older S7-200.
Do I need to configure anything after fitting it?
No hardware settings. Add the module to the hardware configuration in STEP 7-Micro/WIN SMART in the same slot order as it sits on the rail, download, and the addresses are assigned automatically.
How many of these can I install on one CPU?
Up to six expansion modules in total per CPU, counting all EM types together.
Is this a genuine Siemens module?
Yes. RendatSP supplies new original Siemens parts only, with the Siemens order number and packaging.
How fast can you quote and ship?
Same working day for a quotation. Send the order number and quantity and we will confirm delivered price and lead time to your country.
