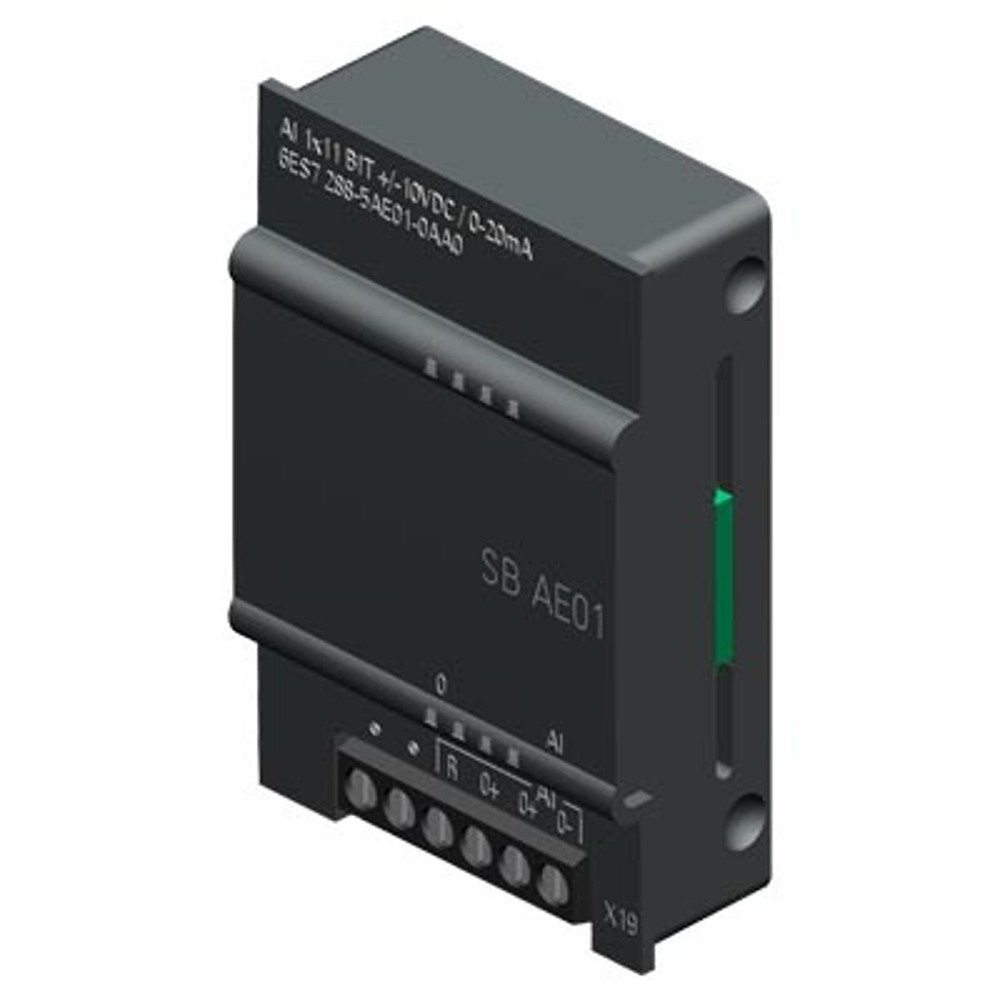

The Siemens 6ES7288-5AE01-0AA0 is an SB AE01 signal board that adds a single analog input to an S7-200 SMART CPU without using an expansion slot.
It is the neat answer to the machine that needs exactly one analog measurement – one pressure transmitter, one level sensor, one potentiometer – where fitting a four-channel EM module would waste both money and rail space.
A signal board plugs into the recess in the front face of the CPU, so it adds function without adding a single millimetre to the width of the controller. Every expandable S7-200 SMART CPU takes exactly one signal board, and it can be fitted alongside the six EM expansion modules.
Technical data
| Siemens order number | 6ES7288-5AE01-0AA0 |
|---|---|
| Product family | SIMATIC S7-200 SMART |
| Module type | SB AE01 |
| الوظيفة | 1 analog input signal board |
| Analog inputs | 1 channel |
| Input ranges | Voltage +/-10 V, +/-5 V, +/-2.5 V or current 0 to 20 mA |
| Resolution | 11 bits plus sign |
| Connection | Removable screw terminal block |
| Mounting | Clips into the recess in the front of the CPU – uses no extra rail width |
| Compatible CPUs | S7-200 SMART SR, ST and G2 CPUs (not the non-expandable CR series) |
| الوزن | approx. 17 g |
| Operating temperature | -20 to +55 C (horizontal mounting) |
| Condition | New, original Siemens |
Typical applications
- Single pressure, level or temperature transmitter
- Operator setpoint potentiometer
- Monitoring one 4 to 20 mA loop
- Small machines with no free expansion slot
- Retrofits where panel space is tight
Frequently asked questions
Which CPUs accept this signal board?
All expandable S7-200 SMART CPUs – SR20, ST20, SR30, ST30, SR40, ST40, SR60, ST60, the V3.0 versions and the G2 range. One signal board per CPU. The economic CR-series CPUs do not have a signal board slot.
Does it take up an expansion slot?
No. The signal board sits inside the CPU front cover, so all six EM expansion slots stay free.
Is it a genuine Siemens part?
Yes. RendatSP supplies new original Siemens parts only, with the Siemens order number and packaging.
Can you ship to my country?
Yes. RendatSP ships worldwide from Yiwu, China, with local agents in eleven countries across the Middle East and North Africa.
How quickly can I get a quotation?
The same working day. Send the order number and quantity and we will confirm delivered price and lead time.
