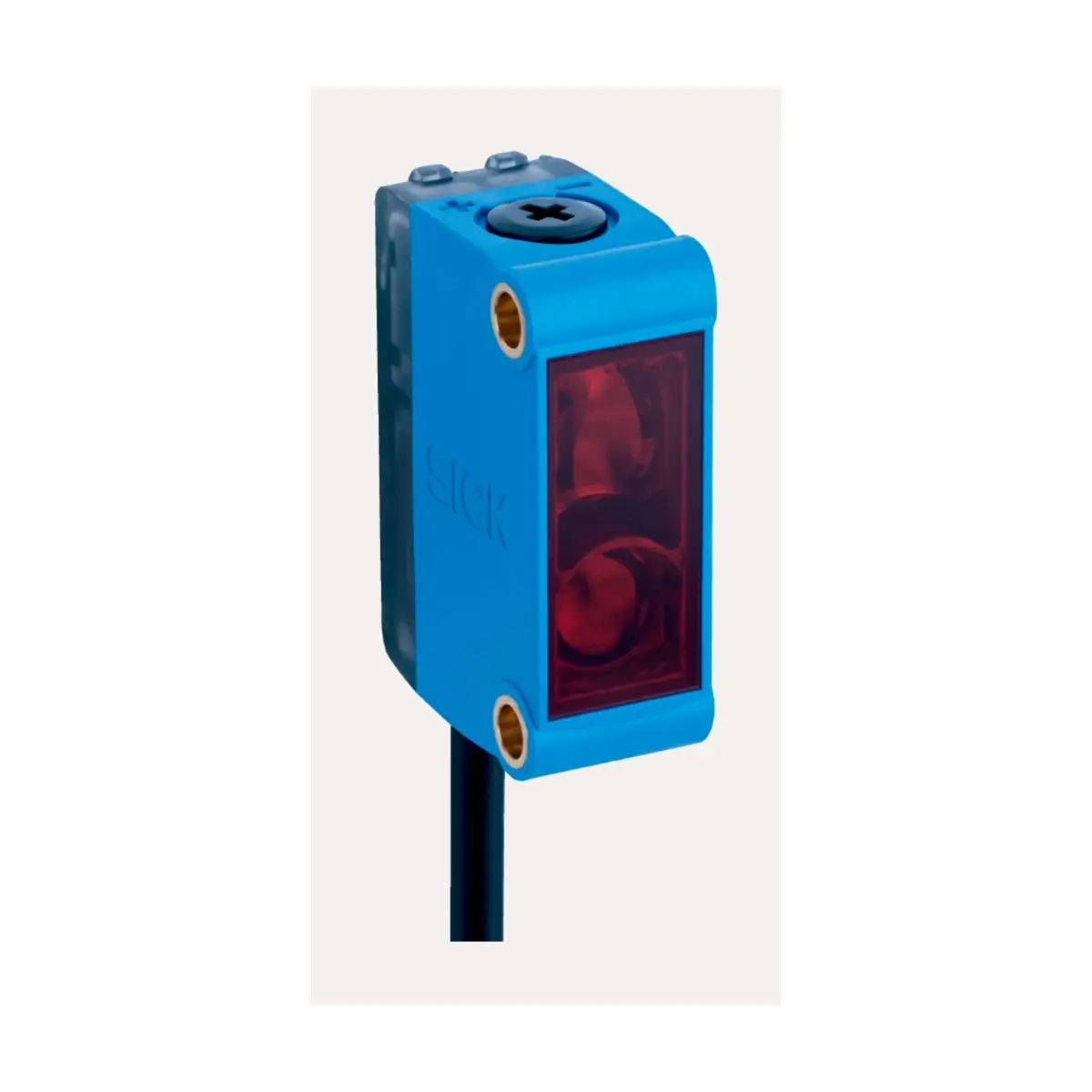

The SICK GTB6L-P1211 is a laser photoelectric proximity sensor with background suppression from the SICK G6 series, SICK part number 1109656. It has a sensing range of 30 mm to 180 mm, up to 400 mm, a pnp output and a 2 m 3-wire cable. The housing measures just 12 x 31.5 x 21 mm, runs on 10 to 30 V DC and is rated IP67.
Background suppression is what makes this sensor different from a plain diffuse sensor. It measures where the reflected light lands on the receiver, not how much comes back, so it detects the object in front and ignores whatever sits behind the set distance. A black part on a bright stainless steel frame, or a matt part in front of a shiny conveyor, is still detected reliably, and the switching point barely moves when the surface colour changes.
The G6 body is the reason this family is fitted so widely. At 12 mm wide it goes where a standard sensor will not, the two through-holes take an M3 screw or the standard SICK brackets, and the whole series shares the same mounting pattern, so a diffuse, a retro-reflective and a through-beam version can be swapped on the same fixture without redrilling anything. Adjustment is by teach-in, and the output can be set to light switching or dark switching.
This version has a 2 m cable moulded into the sensor, which is the cheaper option and the one to use where the sensor is rarely changed and the cable can be run straight to the terminal box.
Technical specifications
| Brand | SICK |
|---|---|
| SICK part number | 1109656 |
| رمز الموديل | GTB6L-P1211 |
| Product family | SICK G6 |
| Product type | Photoelectric proximity sensor with background suppression, laser |
| Sensing range | 30 mm to 180 mm, up to 400 mm |
| Reflector required | No reflector needed |
| Light source | Visible red laser, 680 nm, laser class 1 |
| Light spot size | 0.4 mm diameter at 150 mm |
| Switching output | PNP |
| Switching mode | Light or dark switching, selectable |
| Output current | <= 100 mA |
| Response time | <= 625 µs |
| Adjustment | Teach-in |
| Supply voltage | 10 V DC to 30 V DC |
| Current consumption | <= 20 mA without load at 24 V |
| التوصيل الكهربائي | Cable, 3-wire, 2 m |
| Enclosure rating | IP67 |
| Ambient operating temperature | -20 to +50 degrees C |
| Storage temperature | -40 to +70 degrees C |
| Housing material | Plastic, ABS/PC |
| Front screen material | Plastic, PMMA |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| الوزن | 60 g |
| Protection class | III |
| Circuit protection | Reverse polarity, short-circuit and interference pulse protected |
What the GTB6L-P1211 is used for
- Part presence and position checks on assembly, packaging and bottling machines
- Counting and gap detection on conveyors
- End position and jam detection on feeders, pushers and diverters
- Label, carton and tray detection on packaging lines
- Machine guarding interlocks and simple presence checks where a safety device is not required
- Detecting dark or matt parts in front of a bright machine frame, where a diffuse sensor would trigger on the background
- Small parts, narrow openings and precise edge detection, where the small laser spot resolves what an LED spot cannot
Frequently asked questions
What does the type code GTB6L-P1211 mean?
SICK builds the G6 code from the sensing principle and the electrical version. GTB6L is the principle: GTB6 is background suppression, GTB6L the laser version of it, GTE6 energetic diffuse, GL6 retro-reflective, GL6G retro-reflective for clear objects, GL6L the laser version, GSE6 a through-beam pair, GE6 a through-beam receiver and GS6 a through-beam sender. In the block after the dash, the first letter is the output, P here, so PNP, and the first digit is the connection: 1 for a 2 m cable and 4 for an M8 4-pin plug. This unit is cable, 3-wire, 2 m.
Is the output NPN or PNP, and does it matter?
This model is PNP. It matters because the PLC input card decides it, not the sensor. A PNP output switches the positive line into the input and is the normal choice in Europe and the Middle East; NPN switches the negative line and is common on Japanese and older Chinese machines. Fitting the wrong one means the input simply never sees the signal, so check the input card before ordering. Everything else in the GTB6L range is identical between the two.
What is background suppression and when do I need it?
A plain diffuse sensor triggers on the amount of light it gets back, so a bright background behind the object can trigger it and a black object may not. A background suppression sensor measures where the light lands on the receiver, which is a measure of distance, so it sees the object in front and ignores anything beyond the set point. Use it whenever the background is close, bright or moving: parts on a steel conveyor, on a machine frame, or in a chute.
How far can the GTB6L-P1211 detect?
The rated sensing range is 30 mm to 180 mm, up to 400 mm. Real range depends on the target: a matt black surface returns far less light than white card, and dust, spray or a dirty lens all cut into the margin. Size the sensor so the working distance is comfortably inside the rated range rather than at its limit.
Can it be used in a washdown or dusty area?
The G6 is rated IP67, which covers dust and temporary immersion, and the housing is ABS/PC with a PMMA front screen. It handles a normal factory environment, including packaging and bottling lines. It is not rated for high pressure washdown, aggressive chemicals or continuous immersion; for those SICK offers stainless steel and IP69K families and we can quote those instead.
Is this a genuine SICK sensor?
Yes. RendatSP supplies new original SICK parts in factory packaging. This item is type code GTB6L-P1211, SICK part number 1109656. The technical data on this page is taken from the official SICK datasheet for this model, and we can send you that datasheet before you order.
Do you ship to Iraq, Saudi Arabia and other Arab markets?
Yes. We ship worldwide from our warehouses and we have local agents in 11 countries, including Saudi Arabia, Iraq, the United Arab Emirates, Egypt, Oman, Libya, Morocco, Mauritania, Yemen, Algeria and Jordan. Send us the type code and the quantity and we will quote delivery to your city.
All SICK GTB6L models we supply
Every version of the GTB6L in the SICK standard range, with the official SICK part number where it is published.
| Model | SICK part number | Output | Connection |
|---|---|---|---|
| GTB6L-N1211 | On request | NPN | Cable, 3-wire, 2 m |
| GTB6L-N4211 | On request | NPN | Male connector M8, 4-pin |
| GTB6L-P1211 (this page) | 1109656 | PNP | Cable, 3-wire, 2 m |
| GTB6L-P4211 | 1105810 | PNP | Male connector M8, 4-pin |
The rest of the SICK G6 family
The SICK G6 family covers five sensing principles in the same 12 x 31.5 x 21 mm housing, so the mounting and the wiring stay the same whichever one the application needs.
- SICK GTB6 — photoelectric proximity sensor with background suppression, 35 mm to 140 mm, up to 250 mm on highly reflective targets, 14 models
- SICK GTB6L — laser photoelectric proximity sensor with background suppression, 30 mm to 180 mm, up to 400 mm, 4 models (this family)
- SICK GTE6 — energetic photoelectric proximity sensor, 15 mm to 250 mm, up to 300 mm on highly reflective targets, 11 models
- SICK GL6 — retro-reflective photoelectric sensor, 0.07 m to 5 m with a PL80A reflector, 17 models
- SICK GL6G — retro-reflective photoelectric sensor for transparent objects, 0.07 m to 5 m with a PL80A reflector, 8 models
- SICK GL6L — laser retro-reflective photoelectric sensor, 0.08 m to 10 m with a P250F reflector, up to 12 m, 1 models
- SICK GSE6 — through-beam photoelectric sensor, 0 m to 10 m, up to 15 m, 14 models
- SICK GE6 — through-beam photoelectric receiver, 0 m to 10 m, up to 15 m, 4 models
- SICK GS6 — through-beam photoelectric sender, 0 m to 10 m, up to 15 m, 2 models
A side by side comparison of all 75 models is on our SICK G6 sensor selection guide.
Reflectors, cables and brackets
The parts most often ordered together with a SICK G6 sensor are listed below. Send us the type code and we will quote the matching items in the same offer.
- Reflectors PL80A, PL40A and P250F for the retro-reflective models
- Connecting cables with an M8 4-pin socket, straight or angled, 2 m and 5 m
- Mounting brackets and rod mounts for the G6 housing
- The matching sender or receiver where a through-beam pair is being built
- Protective covers and front screen cleaning kits for dusty lines
