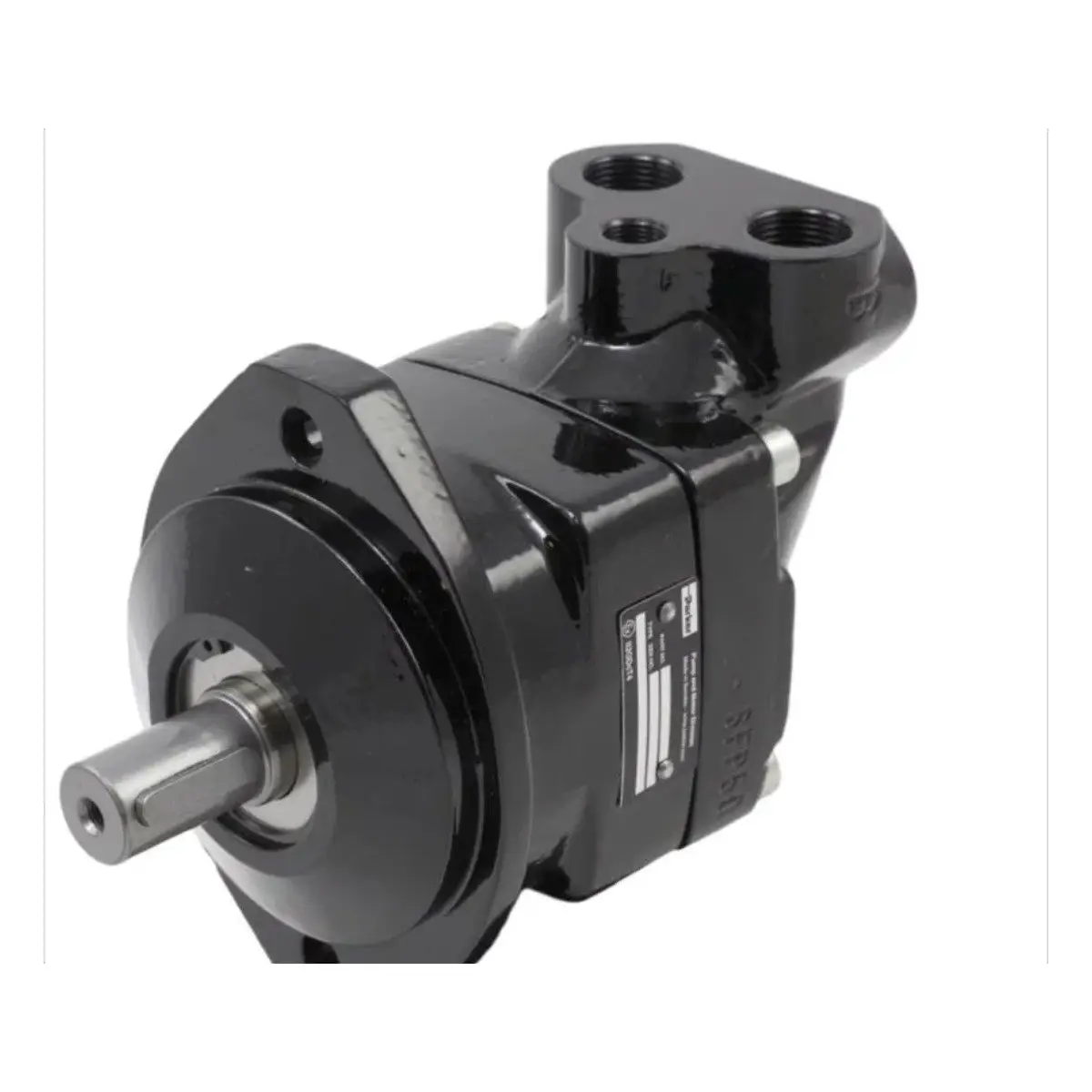

The Parker F11-010-MB-CV-K-000-0000-00 is a genuine Parker Hannifin F11 series bent-axis, fixed displacement hydraulic motor with 9.8 cm3/rev displacement, rated 350 bar continuous and 420 bar intermittent, running up to 11200 rpm. The F11 is a high speed, high pressure motor used on winches, conveyor and mixer drives, fan drives, saws and mobile machinery, and as a compact drive on industrial equipment. RendatSP supplies it by full Parker ordering code to customers across Iraq, Saudi Arabia, the UAE and the wider Arab region.
Technical Specifications
| رقم الصنف | F11-010-MB-CV-K-000-0000-00 |
|---|---|
| Brand | Parker Hannifin |
| Series | Parker F11 bent-axis fixed displacement motor/pump |
| Displacement | 9.8 cm3/rev |
| Maximum continuous pressure | 350 bar |
| Maximum intermittent pressure | 420 bar |
| Maximum continuous speed | 10200 rpm |
| Maximum intermittent speed | 11200 rpm |
| Torque at 100 bar | 15.6 Nm |
| Mounting | CETOP flange (CV) |
| Main ports | BSP threads (MB) |
| Shaft | Metric keyed shaft (K) |
| الوزن | approx. 6.5 kg |
How to Read the Part Number
- F11-098 – F11 frame, 9.8 cm3/rev
- MB – motor function, BSP main port threads
- CV – CETOP flange (CV)
- K – metric keyed shaft
- 000 / 0000 / 00 – standard configuration, no options, no speed sensor
Send RendatSP the full code from the motor nameplate to confirm flange, shaft and port variant.
Typical Applications
Winch and hoist drives, conveyor and mixer drives, cooling fan drives, hydraulic saws and cutters, drilling and mobile equipment, compact industrial drives.
Related Parker Parts
- Parker PV032R1K1T1NMMC PVplus Variable Displacement Axial Piston Pump, 32 cm3/rev, 350 bar
- Parker PV046R1K1T1NMMC PVplus Variable Displacement Axial Piston Pump, 46 cm3/rev, 350 bar
- Parker PV063R1K1T1NMMC PVplus Variable Displacement Axial Piston Pump, 63 cm3/rev, 350 bar
- Parker PV092R1K1T1NMMC PVplus Variable Displacement Axial Piston Pump, 92 cm3/rev, 350 bar
- Parker F12-030-MF-IV-K-000-0000-00 F12 Bent-Axis Fixed Displacement Hydraulic Motor, 30 cm3/rev
See the full Parker range at RendatSP.
Ordering Information
Genuine Parker Hannifin part, supplied by RendatSP with worldwide shipping and local agents across Saudi Arabia, Iraq, the UAE, Egypt, Oman, Libya, Morocco, Mauritania, Yemen, Algeria and Jordan. Send us your machine model, the original Parker part number, or simply the code F11-010-MB-CV-K-000-0000-00, and our team will confirm stock, price and delivery by WhatsApp within one business day.
Frequently Asked Questions
What is the displacement of F11-010-MB-CV-K-000-0000-00?
9.8 cm3/rev.
What pressure and speed is it rated for?
350 bar continuous, 420 bar intermittent, 10200 rpm continuous and 11200 rpm intermittent, per the official Parker catalogue.
Can it be used as a pump?
The F11 is a motor/pump design; this ordering code is the motor version. Ask RendatSP for the pump variant if needed.
What do MB / MF and CV / IV mean?
MB = motor with BSP ports, MF = motor with metric ports; CV = CETOP flange, IV = ISO flange.
Is this a genuine Parker motor?
Yes, RendatSP supplies genuine Parker Hannifin motors against the original ordering code.
