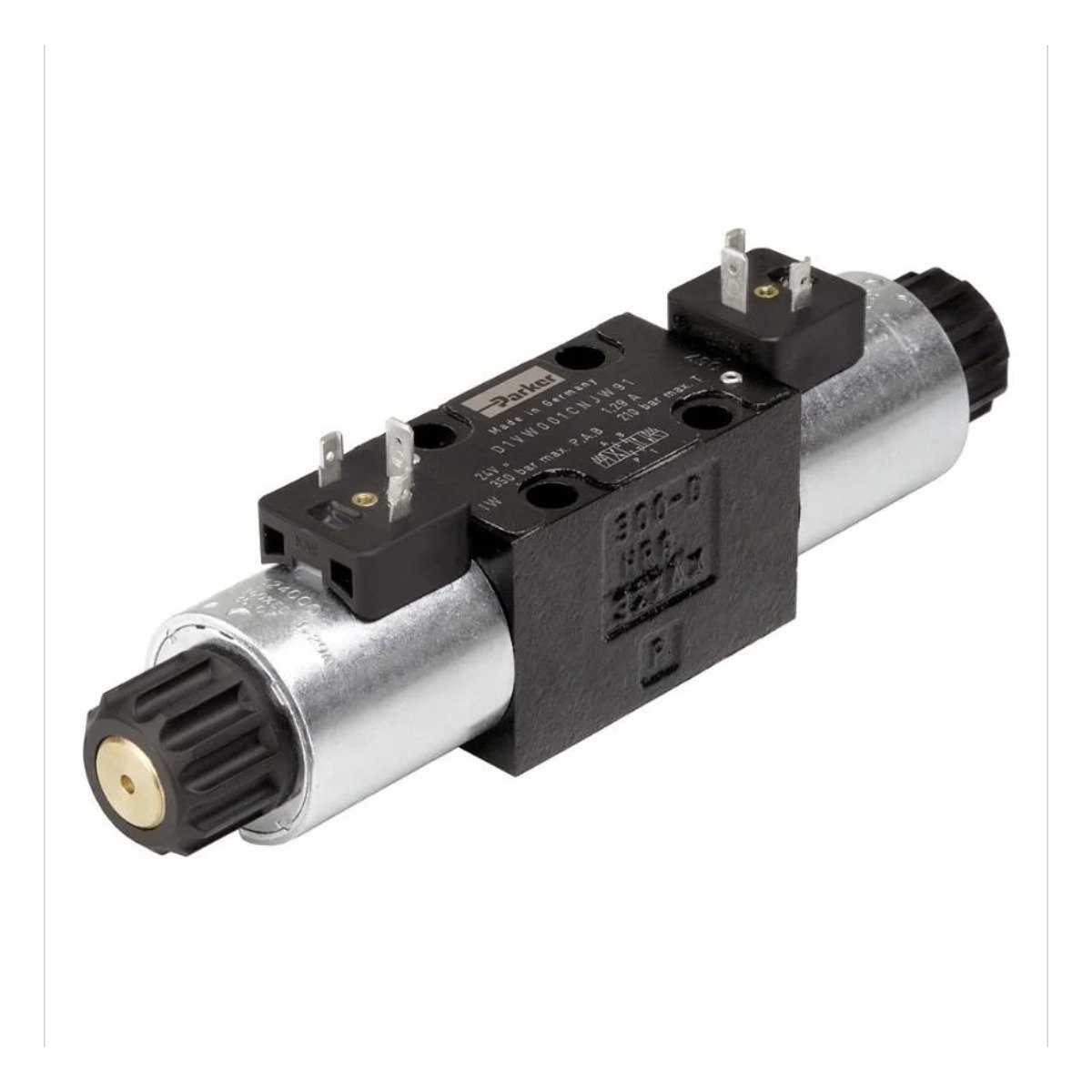

The Parker D1VW001CNYW is a genuine Parker Hannifin D1VW series direct operated, solenoid actuated directional control valve in NG06 (CETOP 03 / ISO 4401-03) size, spool code 001 (4/3, all ports closed in centre (P, A, B, T blocked)), with a 110 V AC (50/60 Hz) solenoid coil. Rated 350 bar and 80 l/min, it is the standard subplate-mounted valve on hydraulic power units, presses, injection moulding machines, packaging and material handling equipment, and one of the most frequently replaced hydraulic parts on production lines across Iraq, Saudi Arabia, the UAE and the wider Arab region.
Technical Specifications
| رقم الصنف | D1VW001CNYW |
|---|---|
| Brand | Parker Hannifin |
| Seal Material | NBR |
| Spool Position | 3 positions, spring offset in position 0, operated in position a or b |
| Operation Type | Direct |
| Input Voltage | 110/120 VAC, 50/60 Hz |
| Maximum Flow Rate | 80 L/min |
| Connection Type | Connector as per EN 175301-803 |
| Spool Code | 001 |
| Mounting Type | Subplate |
| Actuation Type | Solenoid |
| الوزن | 2.1 kg |
| Maximum Operating Pressure | 350 bar |
| Maximum Operating Temperature | 60 °C |
| Minimum Operating Temperature | -25 °C |
| For Fluid Type | Hydraulic Oil According to DIN 51524 |
| الوظيفة | 3-Way |
| Port Connection | NG06 / CETOP 03 |
| Mounting Position | Unrestricted, Preferably Horizontal |
| Body Material | Cast Iron |
How to Read the Part Number
- D1VW – Parker D1VW series, NG06 / CETOP 03 direct operated solenoid valve
- 001 – spool code: 4/3, all ports closed in centre (P, A, B, T blocked)
- C – spool position / spring type (spring centred)
- N – NBR seals
- Y – coil voltage: 110 V AC
- W – connector as per EN 175301-803 (DIN 43650 form A)
Suffix versions such as D1VW001CNYW91 refer to Parker design series and are functionally interchangeable; send RendatSP the full code from your valve label to confirm.
Typical Applications
Hydraulic power units and presses, injection and blow moulding machines, packaging and palletising lines, material handling and mobile hydraulics, any application needing an on/off directional valve in the NG06 subplate pattern.
Related Parker Parts
- Parker D1VW001CNJW Directional Control Valve NG06 CETOP 03, 4/3, 24 V DC
- Parker D1VW002CNJW Directional Control Valve NG06 CETOP 03, 4/3, 24 V DC
- Parker D1VW004CNJW Directional Control Valve NG06 CETOP 03, 4/3, 24 V DC
- Parker D1VW008CNJW Directional Control Valve NG06 CETOP 03, 4/3, 24 V DC
- Parker D1VW020BNJW Directional Control Valve NG06 CETOP 03, 4/2, 24 V DC
See the full Parker range at RendatSP.
Ordering Information
Genuine Parker Hannifin part, supplied by RendatSP with worldwide shipping and local agents across Saudi Arabia, Iraq, the UAE, Egypt, Oman, Libya, Morocco, Mauritania, Yemen, Algeria and Jordan. Send us your machine model, the original Parker part number, or simply the code D1VW001CNYW, and our team will confirm stock, price and delivery by WhatsApp within one business day.
Frequently Asked Questions
What size is the Parker D1VW001CNYW?
It is an NG06 (CETOP 03, ISO 4401-03) subplate mounted valve, the most common small industrial directional valve size.
What does spool code 001 mean?
4/3, all ports closed in centre (P, A, B, T blocked).
What coil voltage is D1VW001CNYW?
110 V AC, with a connector as per EN 175301-803 (DIN form A).
What are the pressure and flow limits?
350 bar maximum operating pressure and 80 l/min maximum flow, per the official Parker specification.
Is D1VW001CNYW interchangeable with other CETOP 3 valves?
Mechanically it fits any ISO 4401-03 / CETOP 03 subplate. Match spool function and coil voltage to your original valve; RendatSP can cross-reference other brands on request.
Is this a genuine Parker part?
Yes, RendatSP supplies genuine Parker Hannifin valves against the original Parker part number.
