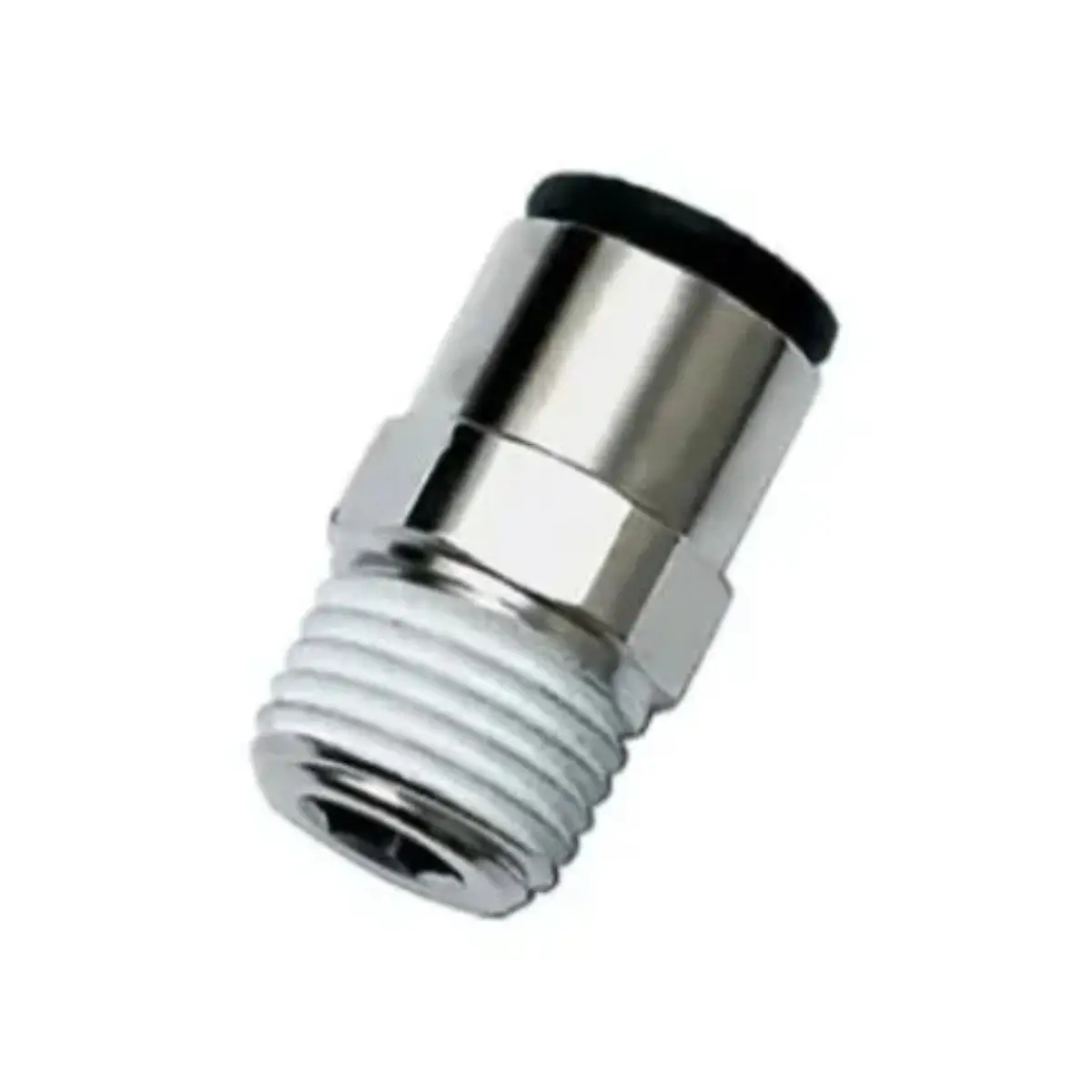

The Parker Legris 3175 08 13 is a genuine LF 3000 series pneumatic push-in fitting: a straight male stud connector for 8 mm outside diameter tube, R 1/4 BSPT male thread. LF 3000 is the Legris composite push-in range found on packaging, bottling, textile and assembly machines worldwide, with a push-to-connect collet for polyurethane, nylon and polyamide tube and a nickel plated brass thread pre-coated with sealant. RendatSP supplies these by Parker Legris part number to factories across Iraq, Saudi Arabia, the UAE and the wider Arab region.
Technical Specifications
| رقم الصنف | 3175 08 13 |
|---|---|
| Brand | Parker Hannifin |
| Connection 1 Size | 8 mm (O.D.) |
| Quantity per Box | 10 |
| Connection 2 Size | R 1/4 |
| Connection 2 Type | Male BSPT |
| Configuration | Tube to Port |
| Product Series | LF 3000® |
| Vacuum Pressure Rating | 755 mm-Hg |
| Shape | Straight |
| Connection 1 Type | Tube |
| Hex Size | 14 |
| Maximum Operating Temperature | 80 °C |
| Minimum Operating Temperature | -20 °C |
| Body Material | Brass, Nickel-plated |
| Seal Material | NBR |
How to Read the Part Number
- 3175 – Legris LF 3000 shape family: straight male stud connector
- 08 – tube outside diameter code: 8 mm
- 13 – thread code: R 1/4 BSPT (R) male
Typical Applications
Pneumatic cylinder and valve connections on packaging, bottling, labelling, printing, textile and assembly machines; air preparation units, blow-off and vacuum lines.
Related Parker Parts
- Parker Legris 3175 06 10 LF3000 Push-In Straight male stud connector, 6 mm tube x R 1/8
- Parker Legris 3175 10 13 LF3000 Push-In Straight male stud connector, 10 mm tube x R 1/4
- Parker Legris 3109 06 10 LF3000 Push-In Male stud elbow (swivel), 6 mm tube x R 1/8
- Parker Legris 3109 08 13 LF3000 Push-In Male stud elbow (swivel), 8 mm tube x R 1/4
- Parker Legris 3104 08 00 LF3000 Push-In Union tee, 8 mm tube
See the full Parker range at RendatSP.
Ordering Information
Genuine Parker Hannifin part, supplied by RendatSP with worldwide shipping and local agents across Saudi Arabia, Iraq, the UAE, Egypt, Oman, Libya, Morocco, Mauritania, Yemen, Algeria and Jordan. Send us your machine model, the original Parker part number, or simply the code 3175 08 13, and our team will confirm stock, price and delivery by WhatsApp within one business day.
Frequently Asked Questions
What tube does 3175 08 13 fit?
8 mm outside diameter polyurethane, nylon or polyamide pneumatic tube.
What thread does it have?
R 1/4 BSPT (R) tapered male thread, pre-coated with sealant for direct fitting.
What pressure and temperature is it rated for?
Up to 20 bar working pressure and vacuum to 755 mmHg, from -20 to +80 C, per the official Parker Legris specification.
Is LF 3000 compatible with other push-in brands?
Any fitting with the same tube size and thread will connect physically; LF 3000 is the Parker Legris original used by many European machine builders.
Is this a genuine Parker Legris part?
Yes, RendatSP supplies genuine Parker Legris fittings against the original part number.
