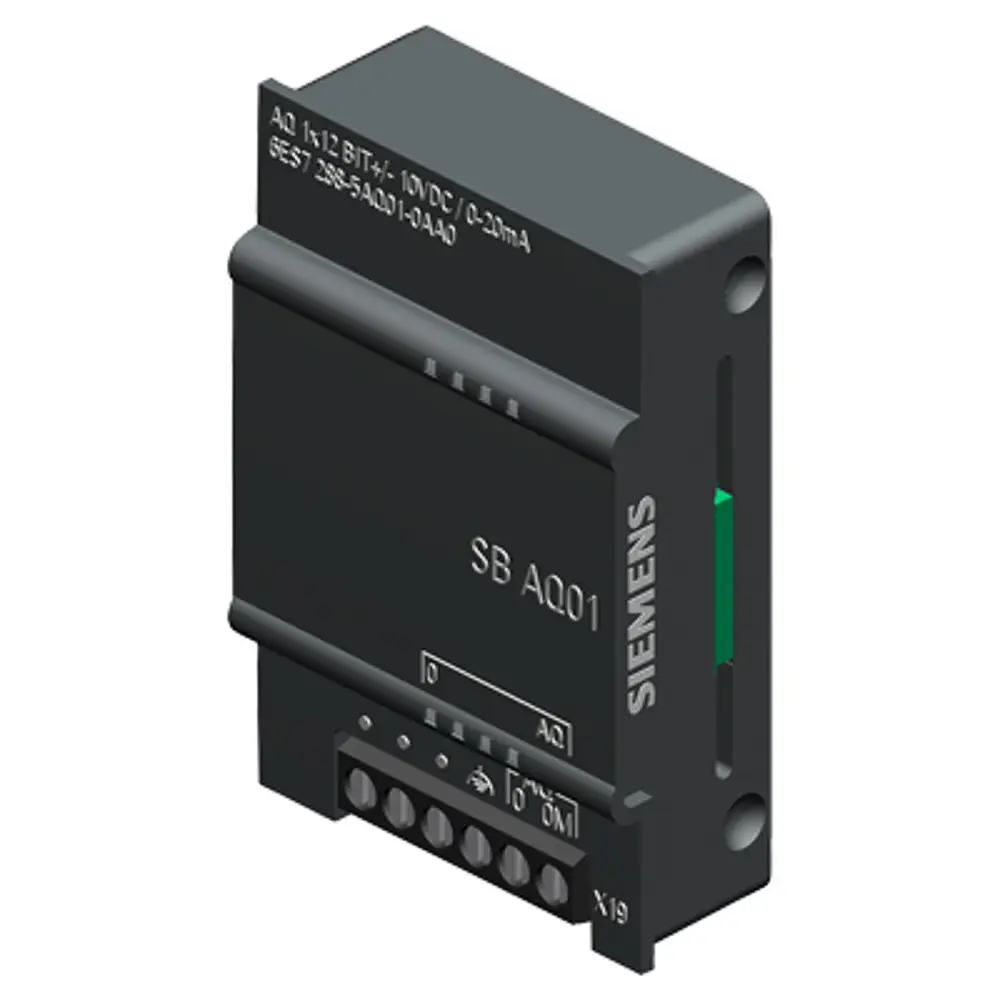

The Siemens 6ES7288-5AQ01-0AA0 is an SB AQ01 signal board that adds a single analog output to an S7-200 SMART CPU, using the front slot instead of an expansion module.
One analog output is all a great many machines need: a speed reference to a single variable frequency drive, or a control signal to one proportional valve. The AQ01 delivers it without occupying one of the six EM slots.
A signal board plugs into the recess in the front face of the CPU, so it adds function without adding a single millimetre to the width of the controller. Every expandable S7-200 SMART CPU takes exactly one signal board, and it can be fitted alongside the six EM expansion modules.
Technical data
| Siemens order number | 6ES7288-5AQ01-0AA0 |
|---|---|
| Product family | SIMATIC S7-200 SMART |
| Module type | SB AQ01 |
| Function | 1 analog output signal board |
| Analog outputs | 1 channel |
| Output ranges | Voltage +/-10 V or current 0 to 20 mA |
| Resolution | 11 bits plus sign (voltage), 11 bits (current) |
| Connection | Removable screw terminal block |
| Mounting | Clips into the recess in the front of the CPU – uses no extra rail width |
| Compatible CPUs | S7-200 SMART SR, ST and G2 CPUs (not the non-expandable CR series) |
| Weight | approx. 17 g |
| Operating temperature | -20 to +55 C (horizontal mounting) |
| Condition | New, original Siemens |
Typical applications
- Speed reference to a single VFD
- Proportional or control valve signal
- Chart recorder or remote indicator output
- Small PID loops on compact machines
- Panel retrofits with no free expansion slot
Frequently asked questions
Which CPUs accept this signal board?
All expandable S7-200 SMART CPUs – SR20, ST20, SR30, ST30, SR40, ST40, SR60, ST60, the V3.0 versions and the G2 range. One signal board per CPU. The economic CR-series CPUs do not have a signal board slot.
Does it take up an expansion slot?
No. The signal board sits inside the CPU front cover, so all six EM expansion slots stay free.
Is it a genuine Siemens part?
Yes. RendatSP supplies new original Siemens parts only, with the Siemens order number and packaging.
Can you ship to my country?
Yes. RendatSP ships worldwide from Yiwu, China, with local agents in eleven countries across the Middle East and North Africa.
How quickly can I get a quotation?
The same working day. Send the order number and quantity and we will confirm delivered price and lead time.
Related SIMATIC parts
- 6ES7288-1ST40-0AA1 – CPU ST40 DC/DC/DC
- 6ES7288-1SR40-0AA1 – CPU SR40 AC/DC/Relay
- 6ES7288-3AE04-0AA0 – EM AE04 4 analog inputs
- 6ES7288-2DE08-0AA0 – EM DE08 8 digital inputs
RendatSP supplies new original Siemens automation parts to factories across Iraq, Saudi Arabia, the UAE, Egypt, Oman, Libya, Morocco, Mauritania, Yemen, Algeria and Jordan, with worldwide shipping from Yiwu, China. Send us the order number and quantity and you will have a quotation the same working day.
