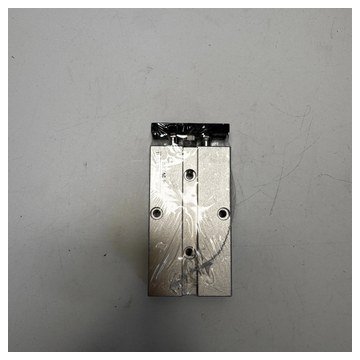

The Airtac TN10X30S is a double-acting twin-rod cylinder from the AirTAC TN series with a 10 mm bore and 30 mm stroke. Two 6 mm piston rods drive a common front plate, which gives good resistance to bending and twisting moments in a body that mounts flush from four directions.
Reading the code: TN = twin-rod cylinder (double acting), 10×30 = bore x stroke in mm, S = with magnet (the TN series is only made with a magnet). A bumper in front of the barrel lets you trim the stroke by up to 5 mm and softens the end impact.
Technical data
| Airtac model | TN10X30S |
|---|---|
| Series | TN twin-rod cylinder (AirTAC enterprise standard) |
| Bore | 10 mm (x2 pistons) |
| Piston rod diameter | 6 mm (x2) |
| Stroke | 30 mm (max. standard stroke for this bore: 100 mm) |
| Adjustable stroke | -5 to 0 mm (front bumper) |
| Acting type | Double acting |
| Magnet | Yes (S) |
| Operating pressure | 0.2-1.0 MPa (29-145 psi) |
| Proof pressure | 1.5 MPa (215 psi) |
| Fluid | Air, filtered by a 40 µm filter element |
| Temperature | -20 to 70 °C |
| Speed range | 30-500 mm/s |
| Cushion | Bumper |
| Stroke tolerance | +1.0/0 mm up to 100 mm stroke, +1.5/0 mm above 100 mm |
| Non-rotating accuracy (retracted) | ±0.4° |
| Port size | M5x0.8 |
| Theoretical force at 0.5 MPa | push 78.6 N / pull 50.3 N (AirTAC thrust table) |
| Condition | New original, factory packaged |
| Origin | Made in China (Airtac International Group) |
Typical applications
- Compact pushers and stoppers where the rod must not rotate
- Ejectors and clamps on small assembly fixtures
- Labeling, marking and printing heads
- Sorting gates on small conveyors
- Like-for-like replacement of an Airtac TN10X30S
Compatibility and replacement
TN is an AirTAC enterprise-standard design. AirTAC also builds the TR twin-rod series to JIS dimensions, so a TR or another brand’s twin-rod cylinder is not automatically a drop-in replacement: check the mounting-hole pattern and plate dimensions. For a like-for-like swap order the same TN bore and stroke shown on the old label.
Frequently asked questions
How much force does it give?
Per the AirTAC thrust table, the TN10 pushes 78.6 N and pulls 50.3 N at 0.5 MPa (two pistons working together). Allow a safety margin for friction and dynamic loads.
How fast can it run?
AirTAC gives a speed range of 30-500 mm/s for this bore, with bumper cushioning. Use speed-control fittings to set the speed and keep impact at the stroke ends low.
Can I fine-tune the stroke?
Yes. The front bumper can be adjusted to shorten the stroke by 0 to 5 mm, which also cushions the end of travel.
