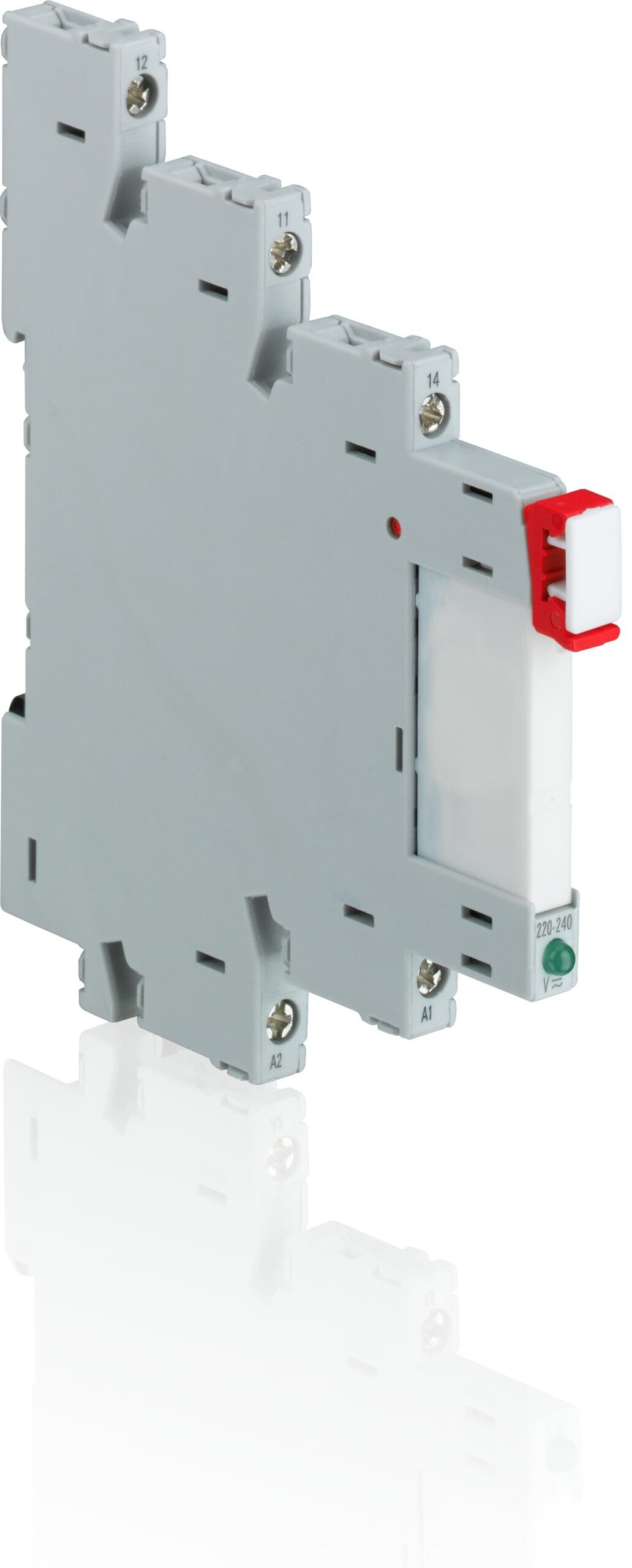

The ABB CR-S230VADC1CRS is a genuine ABB pluggable interface relay from the CR-S slim 6.2 mm interface relay range. CR-S230VADC1CRS Interface relay cpl. 1c/o, A1-A2=230VAC/DC, Output=6A/250VAC screw terminals Interface relays like this one isolate PLC and controller outputs from field loads, multiply contacts and switch solenoid valves, contactor coils, lamps and small motors; the CR range is the standard relay in ABB, Siemens and Schneider panels and one of the most replaced electronic parts on machinery installed across Iraq, Saudi Arabia, the UAE and the wider Middle East.
Technical Specifications
| Part number (type designation) | CR-S230VADC1CRS |
|---|---|
| ABB order code | 1SVR405541R7110 |
| EAN | 4013614499364 |
| Brand | ABB |
| Series | CR Interface Relays |
| Sub-Function | Relay with standard contacts |
| Rated Control Supply Voltage (Us) | 230 V AC/DC |
| Output | 1 C/O (SPDT) Contact |
| Output Signal | 250 V / 6 A |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 6 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 6 A |
| Degree of Protection | Terminals IP20 |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14; IEC/EN 63000; IEC/EN 61810-1; IEC/EN 61984; UL 508 |
| Dimensions W x H x D | 6.3 mm x 76.4 mm x 88.5 mm |
| Net weight | 0.03 kg |
How to Read the ABB Part Number CR-S230VADC1CRS
- CR – ABB control relay (interface relay) range
- S – slim 6.2 mm relay, 1 c/o, 6 A contacts
- 230VADC – rated coil voltage 230 V AC/DC
- 1 – number of change-over (c/o) contacts
Typical Applications
PLC and DCS output isolation, contact multiplication, switching solenoid valves and contactor coils, signal interfacing between 24 V DC control and 230 V AC field devices, marshalling cabinets, machine control panels and building automation.
Related ABB CR Interface Relays
- ABB CR-S024VDC1R
- ABB CR-S024VADC1CRS
- ABB CR-S024VADC1CRZ
- ABB CR-SJB20-RED
- ABB CR-S012/024VADC1SS
- ABB CR-S012/024VADC1SZ
Frequently Asked Questions
What coil voltage does the ABB CR-S230VADC1CRS need?
The rated control supply voltage is 230 V AC/DC, according to ABB technical data.
What contacts does it have?
1 C/O (SPDT) Contact, rated 250 V at 6 A.
Which socket does the CR-S230VADC1CRS plug into?
Use the ABB CR-S012/024VADC1SS (screw) or CR-S012/024VADC1SZ (spring) sockets. Sockets with the relay pre-mounted are also available as complete sets.
Does it have a status indicator?
No LED is built in.
Is the ABB CR-S230VADC1CRS supplied by RendatSP genuine?
Yes. RendatSP supplies the genuine ABB CR-S230VADC1CRS, ABB order code 1SVR405541R7110, in ABB packaging. Send us the type code from your existing part or panel label and we will confirm the exact match.
How fast can RendatSP quote and ship the CR-S230VADC1CRS?
Quotes are sent within hours and orders ship worldwide, including Iraq, Saudi Arabia, the UAE and the wider Middle East.
