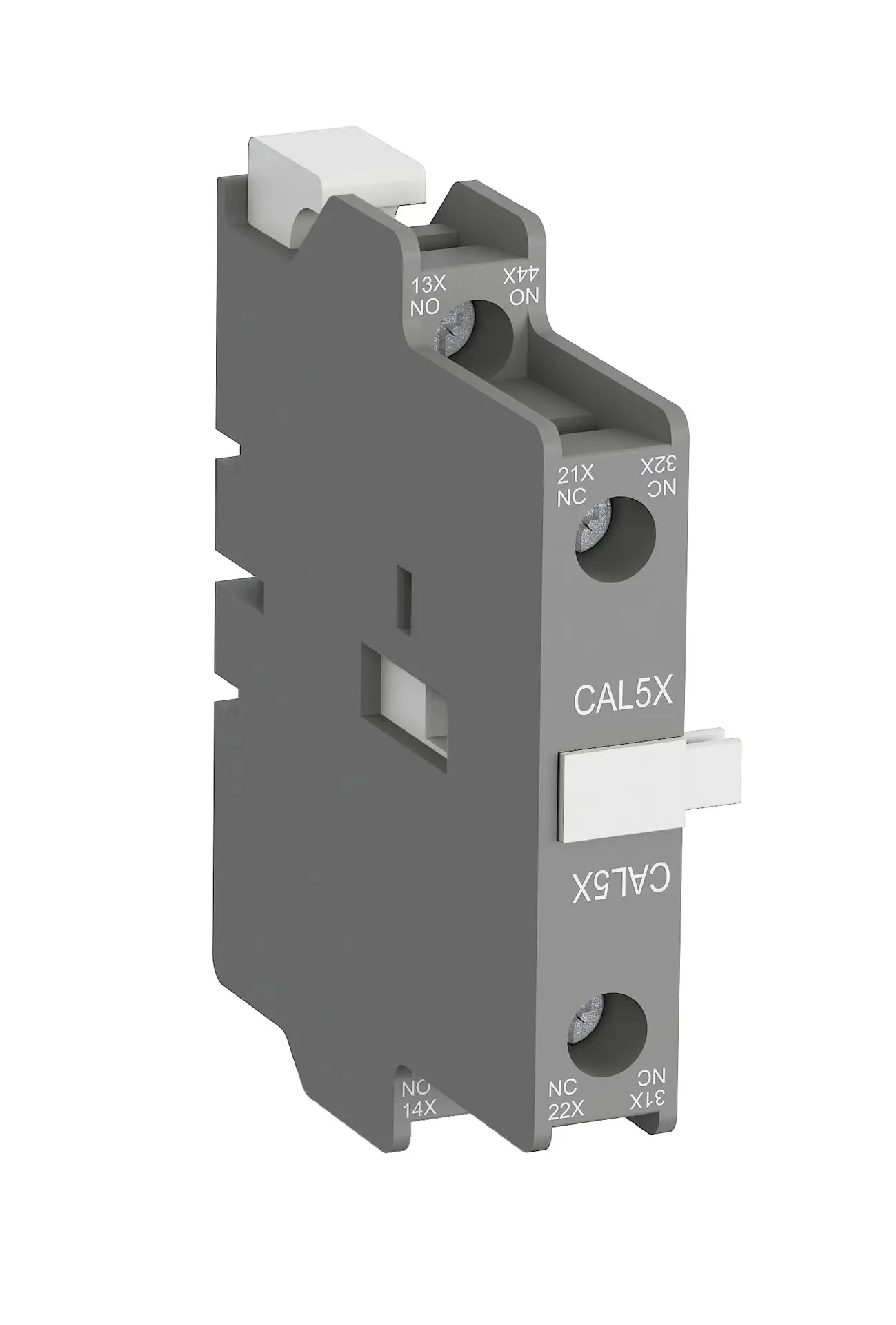

The ABB CAL5X-11 is a genuine ABB add-on auxiliary contact block. CAL5X-11 is a 2-pole side mounted auxiliary contact block equipped with screw terminals and can be fitted on AX06…80 ontactors and NX contactor relays. CAL5X auxiliary contact block can be clipped onto the right- and/or left-hand side of the contactors or the contactor relays and bears the corresponding function marking. CAL5X-11 is available with 1 N.O. and 1 N.C. instantaneous contacts for standard industrial environments. Auxiliary blocks are the cheapest, most frequently replaced part of a contactor starter: they wear before the contactor itself, and a missing NO or NC contact stops the holding circuit, the interlock or the PLC feedback. RendatSP stocks the CAL5X-11 together with the matching AX and AF contactors for panel builders and maintenance teams across Iraq, Saudi Arabia, the UAE and the wider Arab region.
Technical Specifications
| Part number (type designation) | CAL5X-11 |
|---|---|
| ABB order code | 1SBN019020R1011 |
| EAN | 6975486359246 |
| Brand | ABB |
| Series | Contactor Auxiliary Contact Blocks |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 1 |
| Rated Operational Voltage | Auxiliary Circuit 690 V; Main Circuit 690 V |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V |
| Terminal Type | Screw Terminals |
| Suitable For | AX06; AX09; AX12; AX18; AX25; AX32; AX40; AX50; AX65; AX80; NX |
| Dimensions W x H x D | 12 mm x 74 mm x 60 mm |
| Net weight | 0.05 kg |
How to Read the ABB Part Number CAL5X-11
- CAL – side-mounted (lateral) auxiliary contact block
- 5X – contactor frame family it fits (X = AX/NX series)
- 11 – 1 NO + 1 NC contacts
Typical Applications
Adding signalling, interlocking and holding contacts to ABB AX, AF, A and NX contactors and contactor relays in DOL and star-delta starters, reversing starters, pump and compressor panels, HVAC and machine control cabinets.
