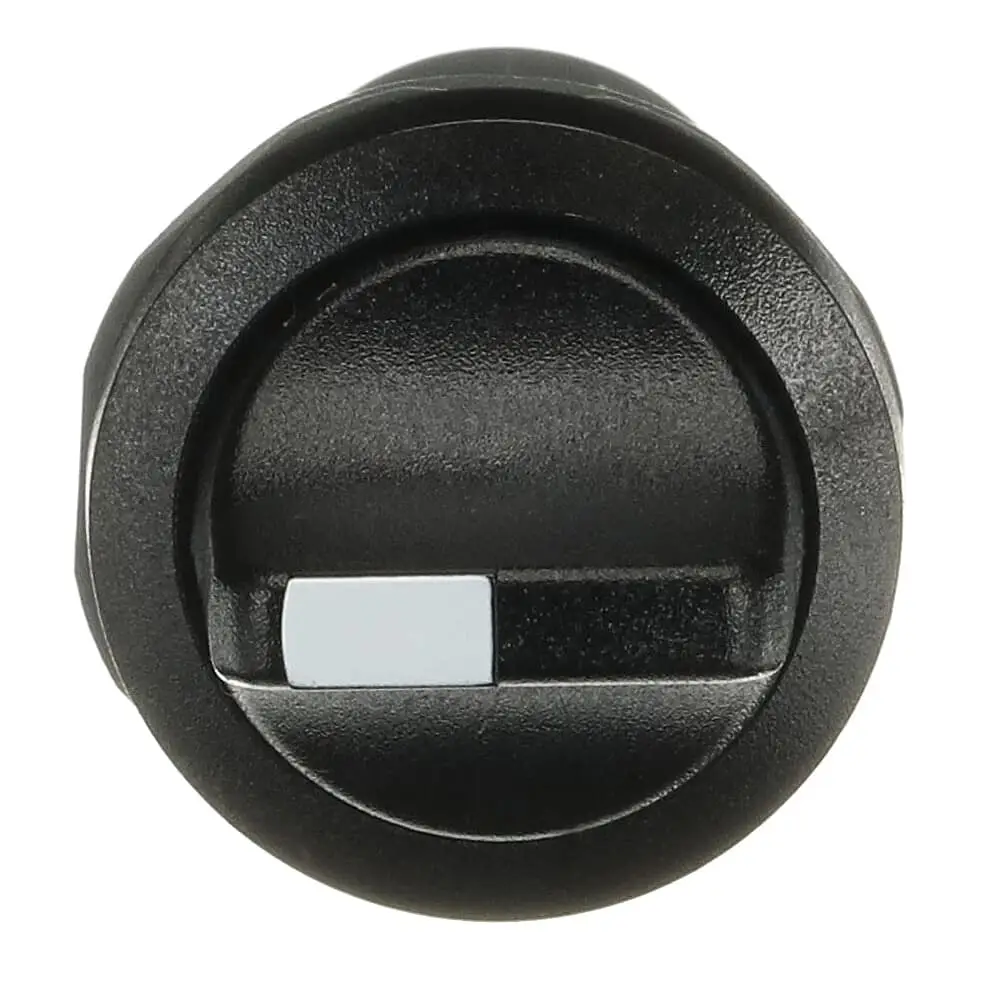

The ABB C3SS2-10B-11 is a genuine ABB selector switch from the ABB 22.5 mm pilot device programme. This Selector Switch is part of ABB’s compact range, the most efficient all-in-one solution available, reducing installation time and cost. The compact range has a high level of dust and water resistance. ABB pushbuttons, emergency stops, selector switches and pilot lights are fitted on most European built machinery and control panels running in Iraq, Saudi Arabia, the UAE and the wider Arab region, and are among the most frequently replaced operator parts after years of use; RendatSP stocks the full compact (CP1/CE4T/C2SS) and modular (MP1/MCB/MLBL) ranges.
Technical Specifications
| Part number (type designation) | C3SS2-10B-11 |
|---|---|
| ABB order code | 1SFA619211R1076 |
| EAN | 7320500555484 |
| Brand | ABB |
| Series | Pilot Devices (22.5 mm) |
| Ambient Air Temperature | Operation -25 … +70 °C; Storage -40 … +85 °C |
| Color | Black |
| Bezel Material | Plastic |
| Illumination | Non-illuminated |
| Function | Momentary |
| Sub-Function | 3-position |
| Spring Return From | A and C to B |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Rated Insulation Voltage (Ui) | 300 V |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Operational Voltage | Maximum 300 V |
| Mechanical Durability | 0.5 million |
| Terminal Type | Screw Terminals |
| Dimensions W x H x D | 30 mm x 30 mm x 72 mm |
| Net weight | 0.024 kg |
How to Read the ABB Part Number C3SS2-10B-11
- C3SS – compact selector switch, 3 positions
- 2 – operating function: Momentary
- 10B – short black handle, non-illuminated
- 11 – contacts: 1 NO + 1 NC
Typical Applications
Machine and conveyor control panels, packaging and printing machines, pump and compressor stations, HVAC and building services, operator desks and pendant stations, and as a like-for-like spare on any panel built with ABB compact or modular pilot devices.
Related ABB Pilot Devices (22.5 mm)
- ABB CE3T-10R-10
- ABB CE4T-10R-10
- ABB CE3P-10R-02
- ABB CE3P-10R-11
- ABB CE4P-10R-11
- ABB CE3K1-10R-01
- ABB CE3K1-10R-02
- ABB CE3K1-10R-11
- ABB CE4K1-10R-01
- ABB CE4K1-10R-02
- ABB CE4K1-10R-11
- ABB CA6-1026
- ABB CA1-8053
- ABB CP1-10G-20
- ABB CP1-10G-11
- ABB CP1-10R-02
- ABB CP1-10R-11
- ABB CP1-10Y-10
- ABB CP1-10Y-20
- ABB CP1-10Y-11
- ABB CP1-10B-10
- ABB CP1-10B-20
- ABB CP1-10B-11
- ABB CP1-10W-10
- ABB CP1-10W-20
- ABB CP1-10W-11
- ABB CP1-10L-10
- ABB CP1-10L-20
- ABB CP1-10L-11
- ABB C2SS1-10B-10
Frequently Asked Questions
What contacts does the ABB C3SS2-10B-11 have?
1 NO + 1 NC contact, rated up to 300 V, screw clamp terminals.
What is the mounting hole size?
22.5 mm (standard 22 mm panel cut-out), front protection IP66 for the compact range and IP66/IP67 for the modular range.
Is it maintained or spring return?
Momentary.
Is the ABB C3SS2-10B-11 supplied by RendatSP genuine?
Yes. RendatSP supplies the genuine ABB C3SS2-10B-11, ABB order code 1SFA619211R1076, in ABB packaging. Send us the type code from your existing part or panel label and we will confirm the exact match.
How fast can RendatSP quote and ship the C3SS2-10B-11?
Quotes are sent within hours and orders ship worldwide, including Iraq, Saudi Arabia, the UAE and the wider Middle East.
