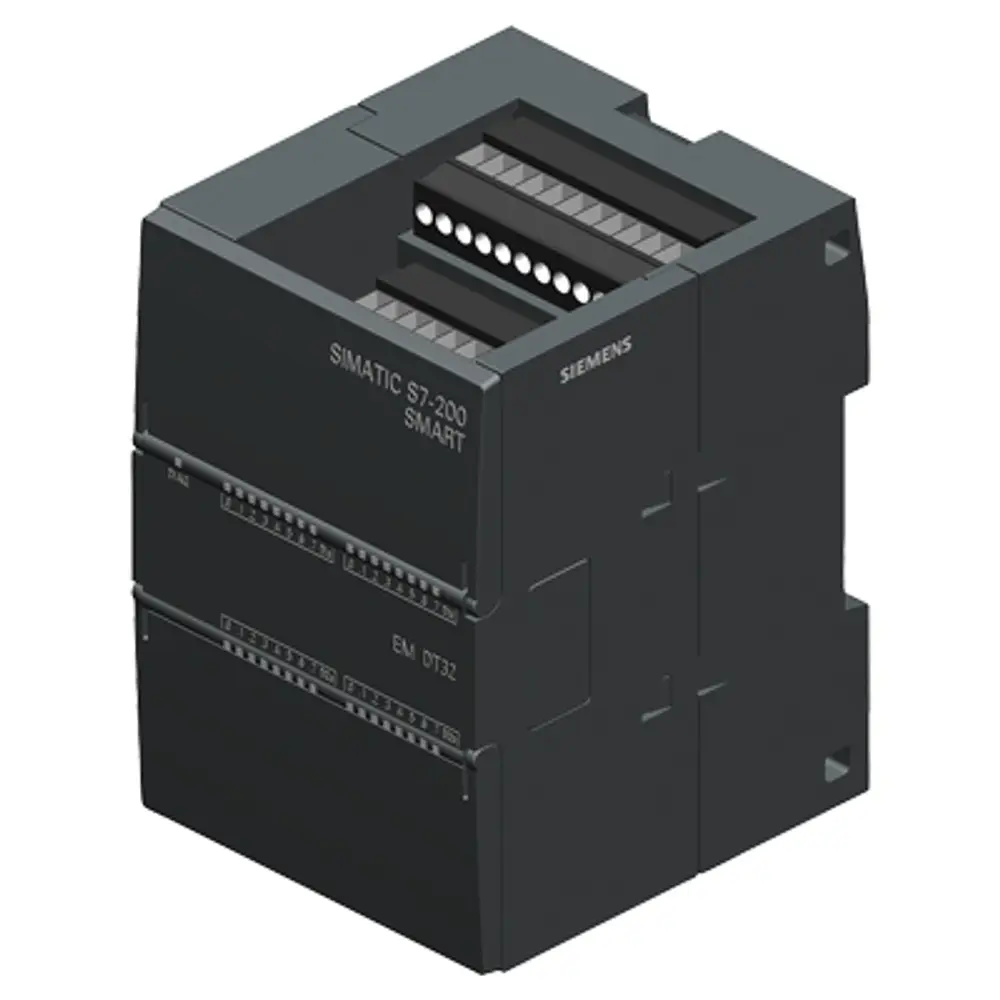

The Siemens 6ES7288-2DT32-0AA0 is an EM DT32 mixed digital module for the SIMATIC S7-200 SMART: sixteen 24 V DC inputs and sixteen 24 V DC transistor outputs.
Thirty-two points on one module keeps the rail short and leaves expansion slots free for analog or communication modules, and the solid-state outputs suit fast, continuously cycling machinery.
EM expansion modules clip onto the right-hand side of an S7-200 SMART SR, ST or G2 CPU and are recognised automatically – the module takes the next free address range and needs no switches or jumpers. Up to six EM modules can be added to one CPU, in any mix of digital and analog, so a machine that outgrows its controller can be extended without replacing it. The economic CR-series CPUs do not accept expansion modules.
Technical data
| Siemens order number | 6ES7288-2DT32-0AA0 |
|---|---|
| Product family | SIMATIC S7-200 SMART |
| Module type | EM DT32 |
| الوظيفة | 16 digital inputs / 16 transistor outputs |
| Digital inputs | 16 x 24 V DC |
| Input characteristics | 24 V DC sinking/sourcing, rated 4 mA per point, 1 = 15 to 30 V DC, 0 = 0 to 5 V DC |
| Digital outputs | 16 x 24 V DC transistor (sourcing) |
| Output characteristics | Solid state MOSFET (sourcing), 20.4 to 28.8 V DC, 0.75 A per point |
| Bus connection | S7-200 SMART expansion bus (CPU right-hand side) |
| Max. modules per CPU | 6 EM per S7-200 SMART SR/ST CPU |
| Dimensions (W x H x D) | 70 x 100 x 81 mm |
| الوزن | approx. 257 g |
| Operating temperature | -20 to +55 C (horizontal mounting) |
| Mounting | 35 mm DIN rail or panel mounting |
| Condition | New, original Siemens |
Typical applications
- Adding sensor inputs to an existing machine
- Driving contactors, solenoid valves and lamps
- Conveyor, packaging and filling machinery
- Panel retrofits where the CPU has run out of points
- Spare stock for installed S7-200 SMART lines
Frequently asked questions
Which CPUs does this module work with?
All expandable S7-200 SMART CPUs: SR20, ST20, SR30, ST30, SR40, ST40, SR60, ST60, the V3.0 versions and the S7-200 SMART G2 CPUs. It does not work with the economic CR-series CPUs, which are not expandable, and it is not compatible with S7-1200 or the older S7-200.
Do I need to configure anything after fitting it?
No hardware settings. Add the module to the hardware configuration in STEP 7-Micro/WIN SMART in the same slot order as it sits on the rail, download, and the addresses are assigned automatically.
How many of these can I install on one CPU?
Up to six expansion modules in total per CPU, counting all EM types together.
Is this a genuine Siemens module?
Yes. RendatSP supplies new original Siemens parts only, with the Siemens order number and packaging.
How fast can you quote and ship?
Same working day for a quotation. Send the order number and quantity and we will confirm delivered price and lead time to your country.
