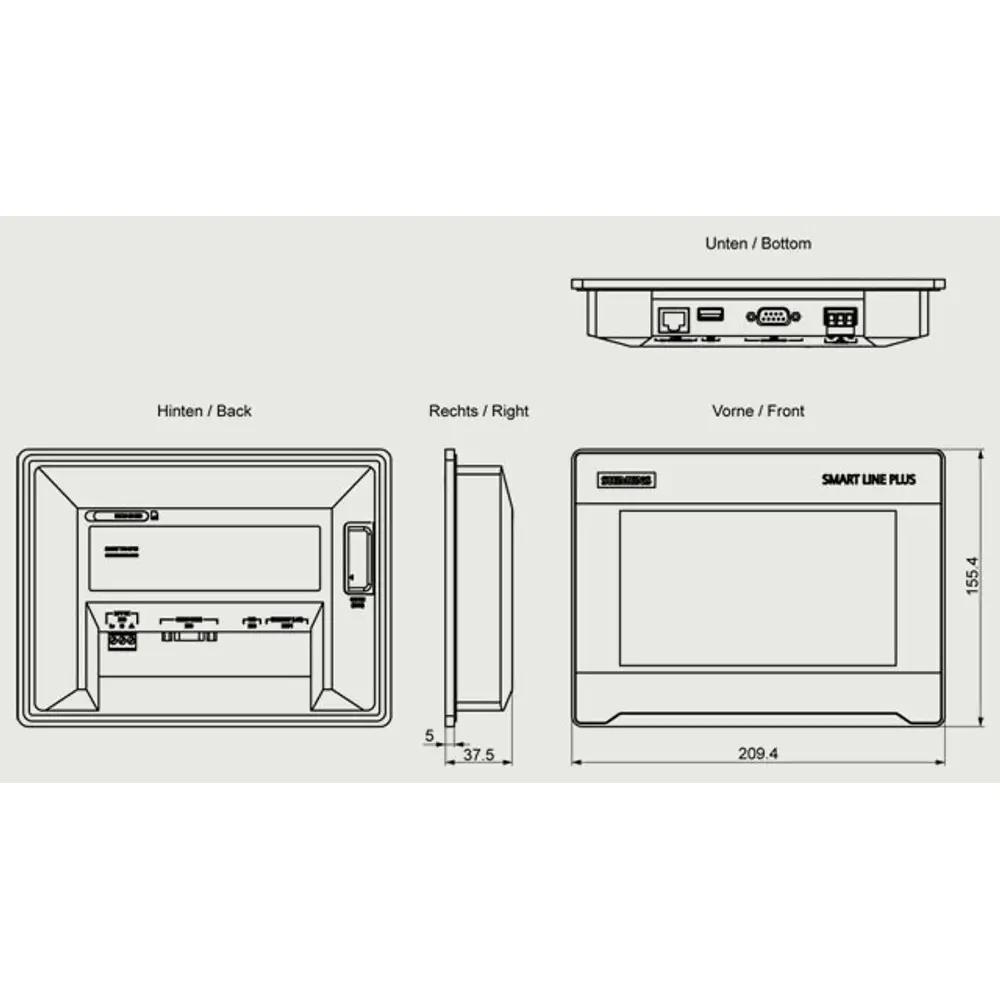

The Siemens 6AV6648-2AC11-3AX0 is a SIMATIC HMI Smart Plus 700 IE touch panel, 7 inch widescreen TFT at 800 x 480 pixels.
The Plus panels are the version that matters when the machine is not built on an S7-200 SMART: as well as the S7-200 SMART, they connect to SIMATIC S7-1200 and S7-1500 controllers, so one low-cost panel family covers a plant running a mix of Siemens platforms.
It is configured with WinCC flexible SMART, powered from 24 V DC and rated IP65 on the front, with Ethernet, RS422/485 and USB host interfaces.
Technical data
| Siemens order number | 6AV6648-2AC11-3AX0 |
|---|---|
| Product family | SIMATIC HMI SMART LINE |
| Model | Smart Plus 700 IE |
| Display | 7″ TFT widescreen, LED backlight |
| Resolution | 800 x 480 pixels |
| Colours | 65,536 |
| Touch screen | Analog resistive |
| Interfaces | 1 x Ethernet RJ45, 1 x RS422/485 (9-pin D-sub), 1 x USB host |
| Supply voltage | 24 V DC (19.2 to 28.8 V) |
| Degree of protection | IP65 front, IP20 rear |
| Configuration software | WinCC flexible SMART |
| Connects to | SIMATIC S7-200 SMART, S7-1200 and S7-1500, plus Modbus RTU and third-party controllers |
| Condition | New, original Siemens |
Typical applications
- Machine operator interface on S7-200 SMART lines
- Recipe selection and parameter entry
- Alarm display and production counters
- Replacing a failed or cracked HMI panel
- Small SCADA panels on water, food and packaging plant
Frequently asked questions
Which software do I configure it with?
WinCC flexible SMART. Siemens keeps the versions upward compatible, so a project built for an earlier SMART panel opens in the newer version of the software.
Which PLCs can this panel talk to?
SIMATIC S7-200 SMART, and also S7-1200 and S7-1500 – that is what the Plus version adds over the standard SMART panels. Modbus RTU and several third-party controllers are supported as well.
Can I use it to replace an older SMART panel?
In most cases yes, but check the cut-out: the panel families keep the same mounting dimensions within a screen size. Send us the order number printed on the back of the panel you are replacing and we will confirm the correct replacement.
Is the touch screen replaceable?
The touch overlay is not sold as a user-replaceable spare by Siemens. For a damaged screen the normal route is a complete replacement panel, which is why most plants keep one spare panel per machine size.
Do you ship to my country?
Yes. RendatSP ships genuine Siemens parts worldwide from Yiwu, China, with local agents in eleven countries across the Middle East and North Africa.
Related SIMATIC parts
- 6ES7288-1ST40-0AA1 – CPU ST40 DC/DC/DC
- 6ES7288-1SR40-0AA1 – CPU SR40 AC/DC/Relay
- 6AV6648-1CM01-3AX0 – Wi-Fi module for SMART panels
- 6AV6648-1CM11-3AX0 – 4G module for SMART panels
